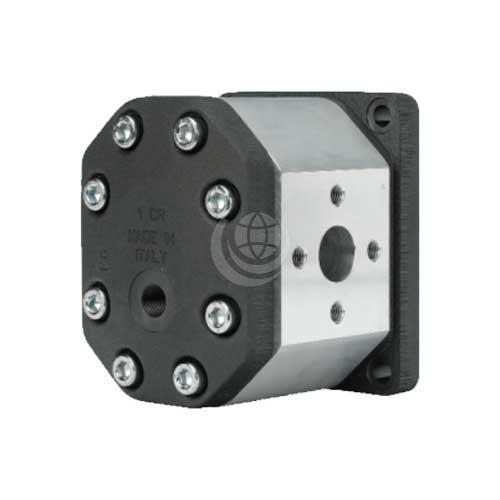

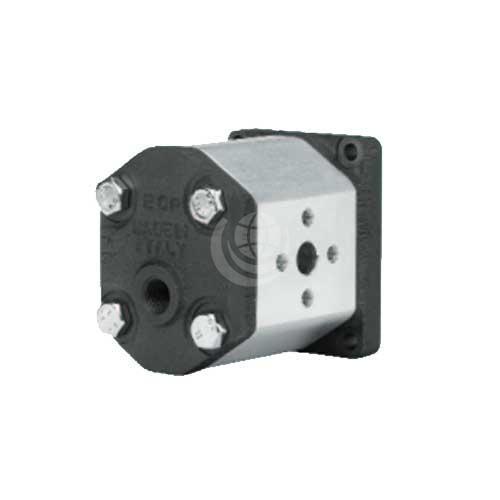

    Marzocchi GHM Series Gear Motors

    Marzocchi GHM Series Gear Motors

    Description

    The GHM series offers identical configurations to the ALM series but is a more robust motor thanks to the cast iron front flange and rear cover.

    Marzocchi GHM series motors are available in model series: GHM1 | GHM2 | GHM3

    GHM1 Series: Displacements from 2.8 cc/rev to to 11.0 cc/rev;  maximum speeds from 2,200 to 5,000 rpm; flows at 1500 rev/minute from 3.9 to 15.7 litres/minute.

    GHM2 Series: Displacements from 4.5 cc/rev to 28.2 cc/rev; maximum speeds from 2,500 to 4,000 rpm; flows at 1500 rev/minute from 6.4 to 40.1 litres/minute.

    GHM3 Series: Displacements from 22 cc/rev to 87 cc/rev; maximum speeds from 2,000 to 3,500 rpm; flows at 1500 rev/minute from 31 to 124 litres/minute.

    Download the Marzocchi GHM Technical Catalogue >>>

    Contact us for further technical details and configuration options.
