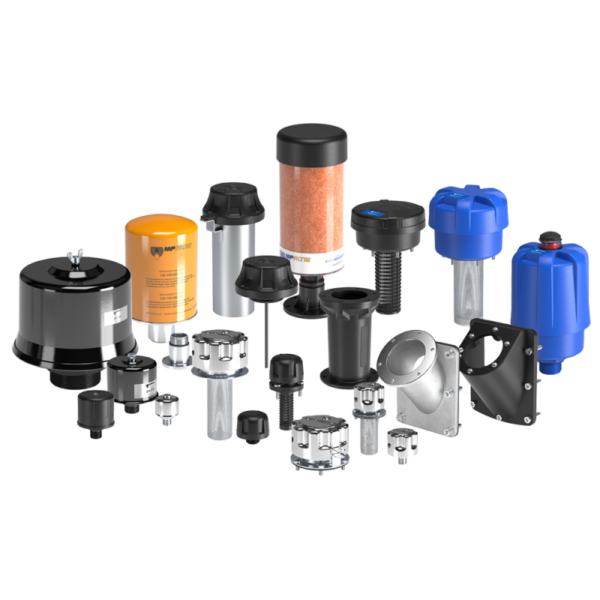

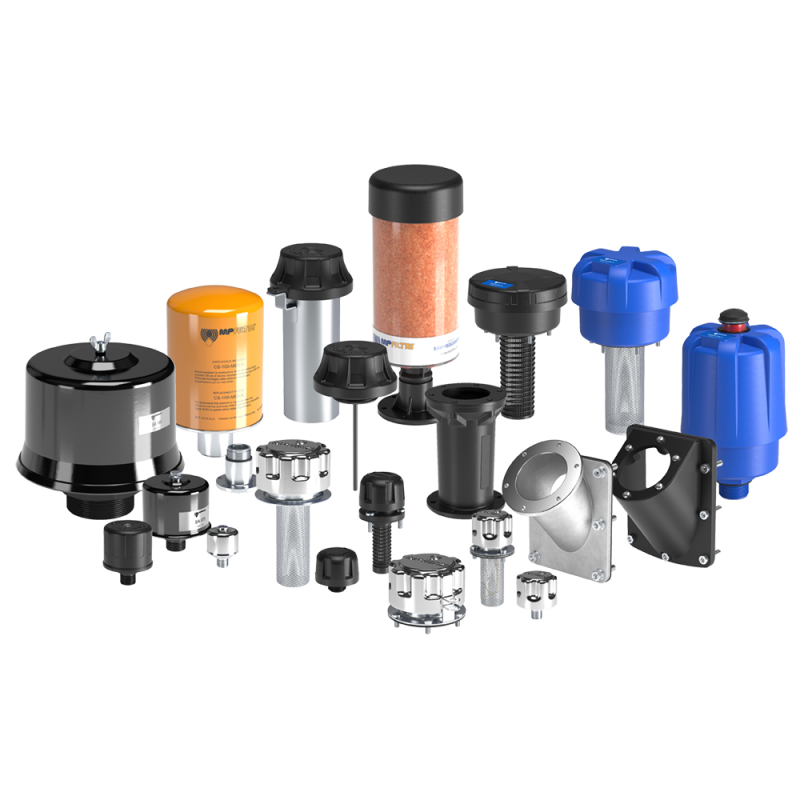

MP Filtri Air Breathers and Filler Caps

MP Filtri air beathers and filler caps have a dual function at the tank inlet: filtering incoming air and pre-filtering fluid through the basket to prevent foreign bodies from entering during filling or refilling. Available in pressurised, non-pressurised, threaded, welded and flanged versions.

The range comprises:

• TA 46 – TAP 50 – SAP 50 | filling caps and air breathers with 3 and 10 micron filter element, flow rate up to 200 litres/minute.
• TA 80 | metal oil filler and air breather cap, usually fitted directly on the tank, flow rate up to 550 litres/minute.
• TAP 90 | nylon oil filler and air breather cap with 3 and 10 micron filter element, flow rate up to 550 litres/minute.
• TAP 114 | nylon oil filler and air breather cap with 10 micron filter element, flow rate up to 1600 litres/minute.
• TAP 115 – SAP 115 | filling caps and air breathers with 3 and 10 micron filter element, flow rate up to 3000 litres/minute.
• SAP 054 – SAP 075 – SA | air breather cap with threaded connection, flow rate up to 2500 litres/minute.
• SCS | air breather filter with spin-on type filter element, fitted with solder or flange connections, flow rate up to 1300 litres/minute.
• SAW 115 | moisture control desiccant air breather, threaded connection, flow rate up to 2500 litres/minute.
• SME 1 – SMF 1 – SML 1 | risers for breather and filler cap installation, usually fitted at any point on the side of the tank.

Common applications: mobile machines and industrial equipment of all sizes, from compact power packs through to large reservoirs.
