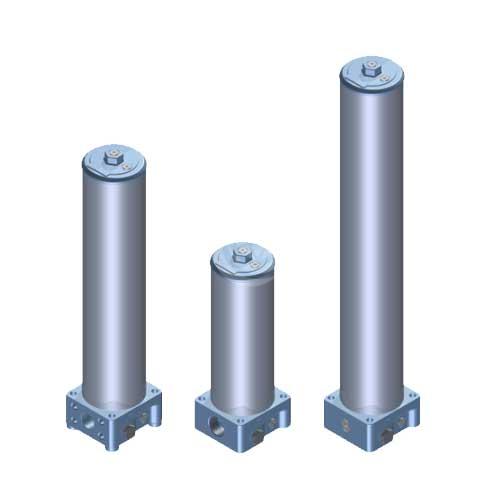

MP Filtri FHF 325 High Pressure Filters

Description

MP Filtri FHF 325 in-line, high pressure filter. Working pressure 350 bar (5076 psi), flow rates up to 500 litres/minute, threaded connections 1 1/2” BSP/NPT/SAE and flanged connections 1 1/2” SAE 6000 psi.

FHF high pressure filters protection sensitive components in high pressure hydraulic systems in mobile and industrial machinery.

Features of MP Filtri FHF 325 filters include:

  • 1 1/2” female threaded connections, 1 1/2” flanged connections and manifold connections up to 1 1/2”, for a maximum flow rate of 500 litres/minute
  • Base-mounting design, for ease of the replacement of the filter element
  • Fine filtration rating
  • Bypass valve, to relieve excessive pressure drop across the filter media; opening pressure 600 kPa (6 bar) ±10%
  • Visual, electrical and electronic differential clogging indicators

Filter housing materials:

  • Head: phosphatised cast iron
  • Housing: phosphatised steel
  • Cover: cast iron (chemical heat treatment)
  • Bypass valve: brass – steel

Pressure:

  • Working pressure: 35 MPa (350 bar)
  • Test pressure: 52.5 MPa (525 bar)
  • Burst pressure: 105 MPa (1050 bar)
  • Pulse pressure fatigue test: 1,000,000 cycles with pressure from 0 to 35 MPa (350 bar)

Contact us for further technical details and configuration options.
