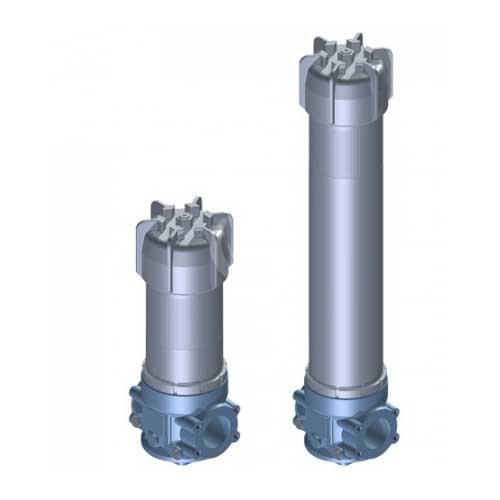

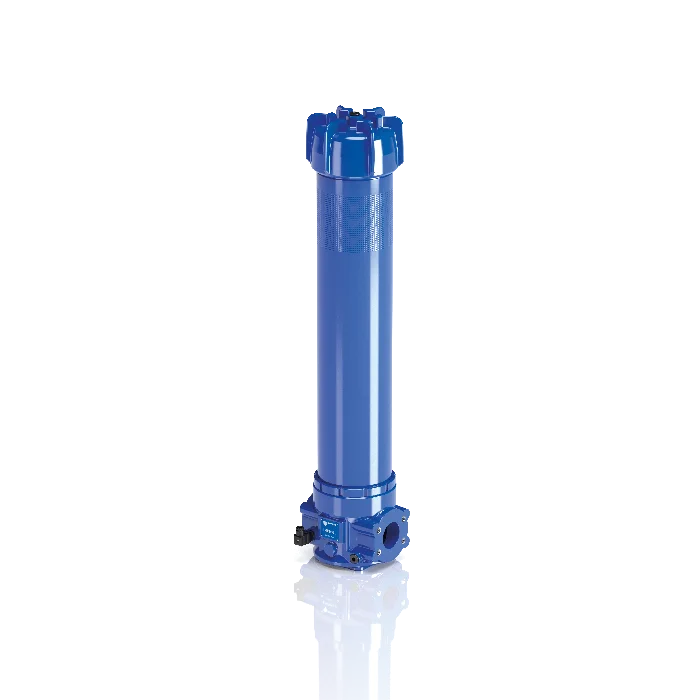

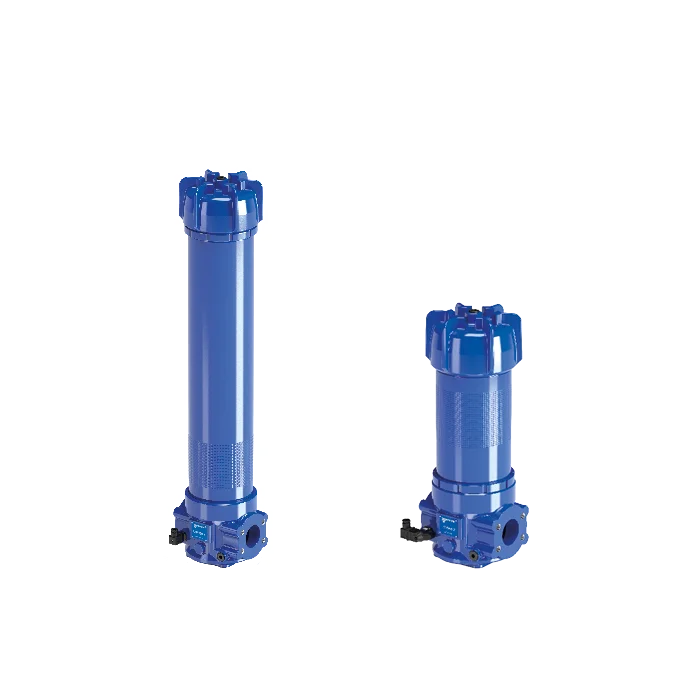

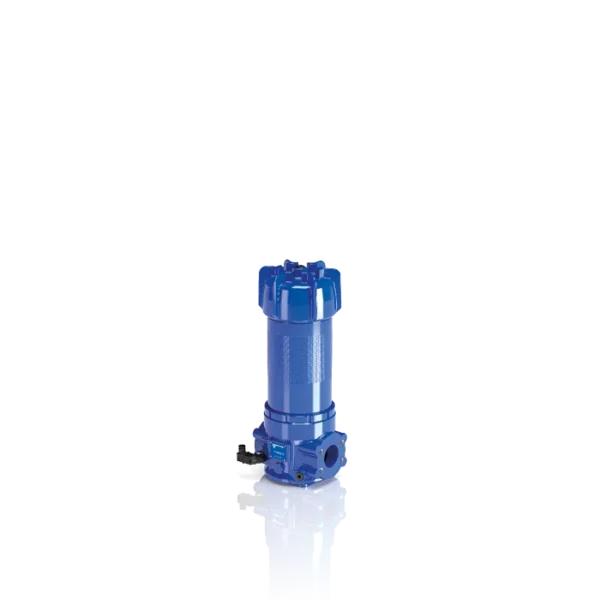

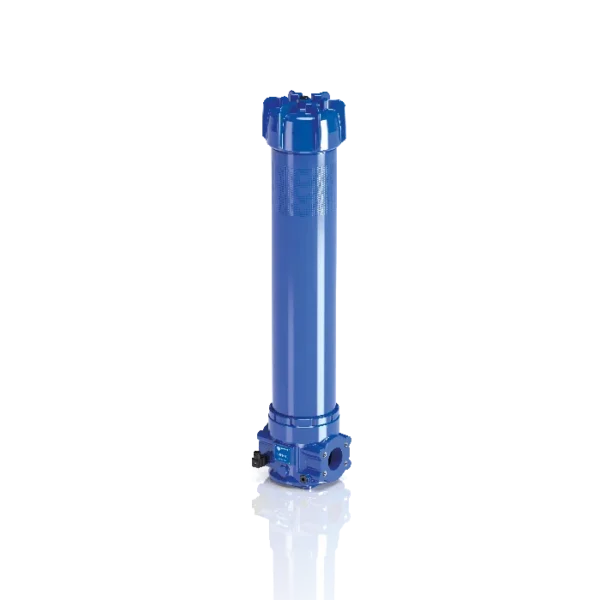

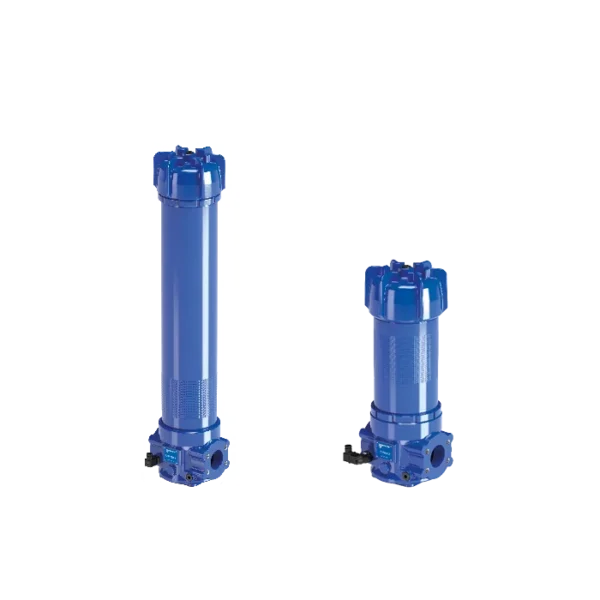

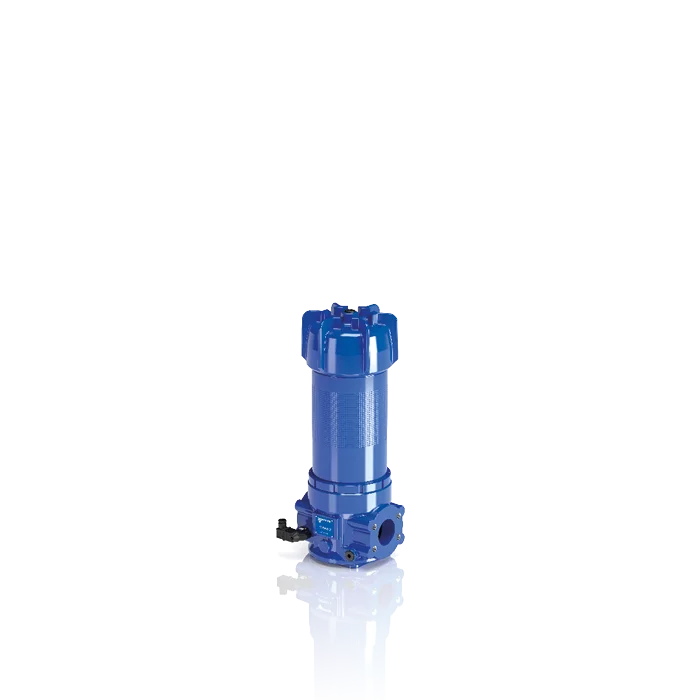

MP Filtri LMP 950 951 Low & Medium Pressure Filters

Description

MP Filtri LMP 950-951 are in-line simplex or modular filters with 2 to 6 heads. They have a working pressure of 30 bar (435 psi) and flow rates up to 2400 litres/minute and 3” and 4” 3000 psi flanged connections.

LMP 950-951 filters have a large surface making them particularly suitable for lubrication and off-line fltration of reservoirs and filtration equipment.
They are directly connected to the lines of the system by hydraulic fittings.

LMP 950 has an in-line inlet/outlet; LMP 95 has a 90° inlet/outlet.

Other features of both MP Filtri LMP 950 and LMP 951 filters include:

  • Vertical mounting
  • Flanged connections up to 4”, for a maximum flow rate of 2400 litres/minute
  • In line or 90° connections, to meet any type of application
  • Base-mounting design to ease replacement of the filter element; opening pressure 350 kPa (3.5 bar) ±10%
  • Fine filtration rating
  • Water removal elements, to remove free water from the hydraulic fluid
  • Bypass valve, to relieve excessive pressure drop across the filter media
  • Vent ports, to avoid air trapped inthe flter entering the system
  • Drain ports, to remove the uid from the housing prior the maintenance work
  • Visual, electrical and electronic differential clogging indicators
  • Seals: standard NBR, series A | optional FPM, series V
  • Temperature: from -25 °C to +110 °C

Pressure:

  • Test pressure: 4,5 MPa (45 bar)
  • Burst pressure: 12 MPa (120 bar)
  • Pulse pressure fatigue test: 1,000,000 cycles with pressure from 0 to 3 MPa (30 bar)

Filter housing materials:

  • Head: anodised aluminium
  • Housing: anodised aluminium
  • Bypass valve: anodised aluminium

Contact us for further technical details and configuration options.
