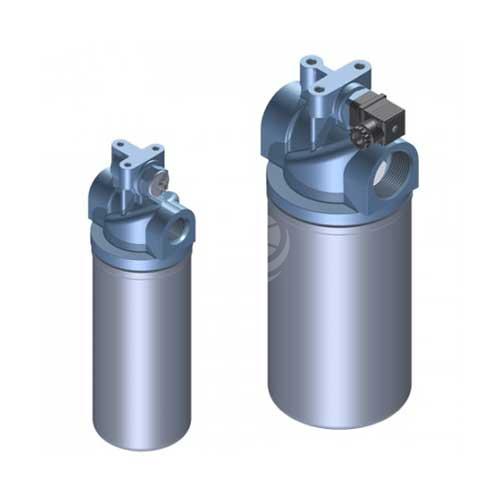

MP Filtri MSH Spin-On Filters


MP Filtri MSH filters in-line, spin-on filters have a working pressure of 35 bar (508 psi), flow rates up to 195 litres/minute and threaded connections from 3/4” to 1 1/2” BSP/NPT/SAE. They are directly connected to the lines of the system through the hydraulic fittings.

Features include:

  • Vertical mounting
  • Female threaded connections up to 1 1/4”, for a maximum ow rate of 195 litres/minute
  • Fine filtration rating
  • Strong sealing between the housing and canister, for heavy-duty applications
  • Bypass valve, to relieve excessive pressure drop across the filter media; opening pressure: 250 kPa (2.5 bar) ±10%
  • Visual, electrical and electronic differential clogging indicators for low pressure applications
  • Seals: standard NBR,  series A | optional FPM, series V
  • Temperature: from -20 °C to +110 °C

Filter housing materials:

  • Head: anodised aluminium
  • Bypass valve: nylon – steel
  • Element: aluminium – painted steel

MP Filtri MSH filters are available in 4 sizes: 50 | 70 | 100 | 150

Contact us for further technical details and configuration options.
