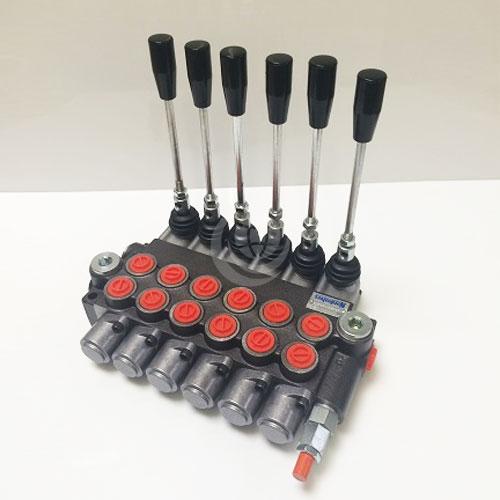

Nordvalves P40 Monoblock Valves 3/8″


Nordvalves P40 monoblock directional control valves, available in 1 to 7 working sections:

  • Spring-centred
  • 3/8″ BSP ports
  • Ambient temperature: -40°C to +60°C
  • Hydraulic fluid: mineral-oil-based hydraulic oil
  • Fluid temperature: -15°C to +80°C
  • Maximum operating pressure: P=250 bar; T=50 bar; A, B = 300 bar
  • Leakage: (A, B-T)15 cm³/min at 120 bar
  • Nominal flow: 40 litres/minute

Contact us for further technical details and configuration options.

Download the Nordvalves P40 Series Technical Catalogue >>>
