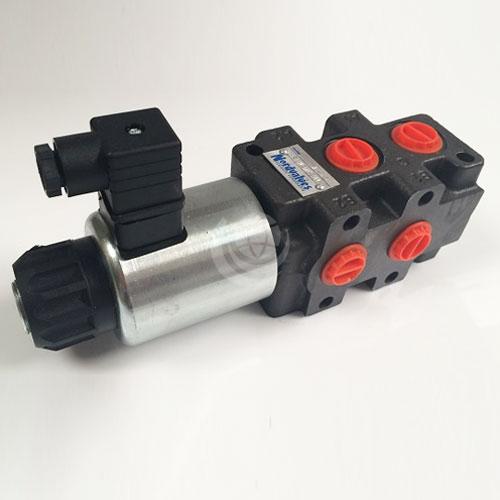

    Nordvalves SVV90-6/2 Diverter Valve – 1/2″ BSP

    Nordvalves SVV90-6/2 Diverter Valve – 1/2″ BSP

    Solenoid Operated Diverter Valves

    Description

    Nordvalves solenoid operated diverter valve: 6 port, 1/2″BSP, for 12vDC or 24vDC:

    • Valve body: cast iron EN-GJL300 alloy
    • Ambient temperature: -40°C to +95°C
    • Hydraulic fluid: mineral-oil-based hydraulic oil
    • Fluid temperature: -120°C to +70°C
    • Maximum operating pressure: 280 bar
    • Leakage: 100 bar and 25mm²/s viscosity 2.0 cm³/min
    • Nominal flow: 90 litres/minute
    • Duty cycle: 100%

    Contact us for further technical details and configuration options.

    Download the Nordvalves SVV90 Series Technical Catalogue >>>
