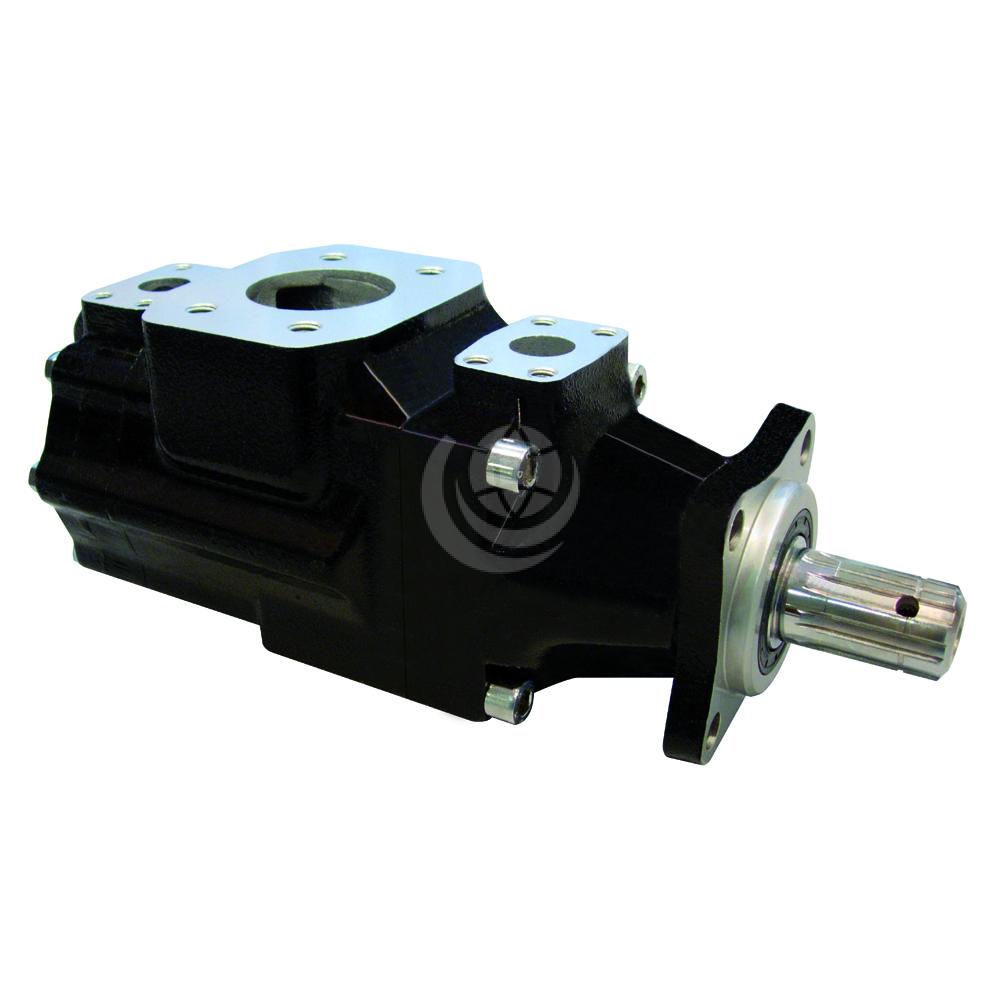

Parker Denison T6G, T67G, T6ZC PTO Pumps
- Technical Data
Parker Denison T6G, T67G and T6ZC series mobile pumps are specially designed for power take-off (PTO) mounting. They are available as: T67GB | T6GC – T6ZC | T67GB – T6GC | T6ZC | T6GCC
These mobile T6 and T67 series vane pumps have ‘B’ or ‘C’ cartridges. The combination of different cartridges in single and double pumps allows low flow at high pressure and high flow at lower pressure – a clever way to optimise your circuit design. In double pumps, the large suction port is common.
Parker Denison T6G, T67G and T6ZC flow rates are:
- B size cartridge: 5.8 to 50.0 ml/rev.
- C size cartridge: 10.8 to 100.0 ml/rev.
Corresponding maximum pressure rates are:
- B size cartridge: 300 bar
- C size cartridge: 275 bar
High mechanical and volumetric efficiency, typically 94%, reduces heat generation and allows speeds down to 400 rpm at full pressure. The wide speed range capability of Parker Denison T6G, T67G and T6ZC pumps – from 400 rpm to 3600 rpm – combined with large size cartridge displacements, ensures low nosie levels in a compact design.
Single pumps have 4 different mounting positions; double pumps have 32 different positions.
Contact us for further technical details and configuration options.
