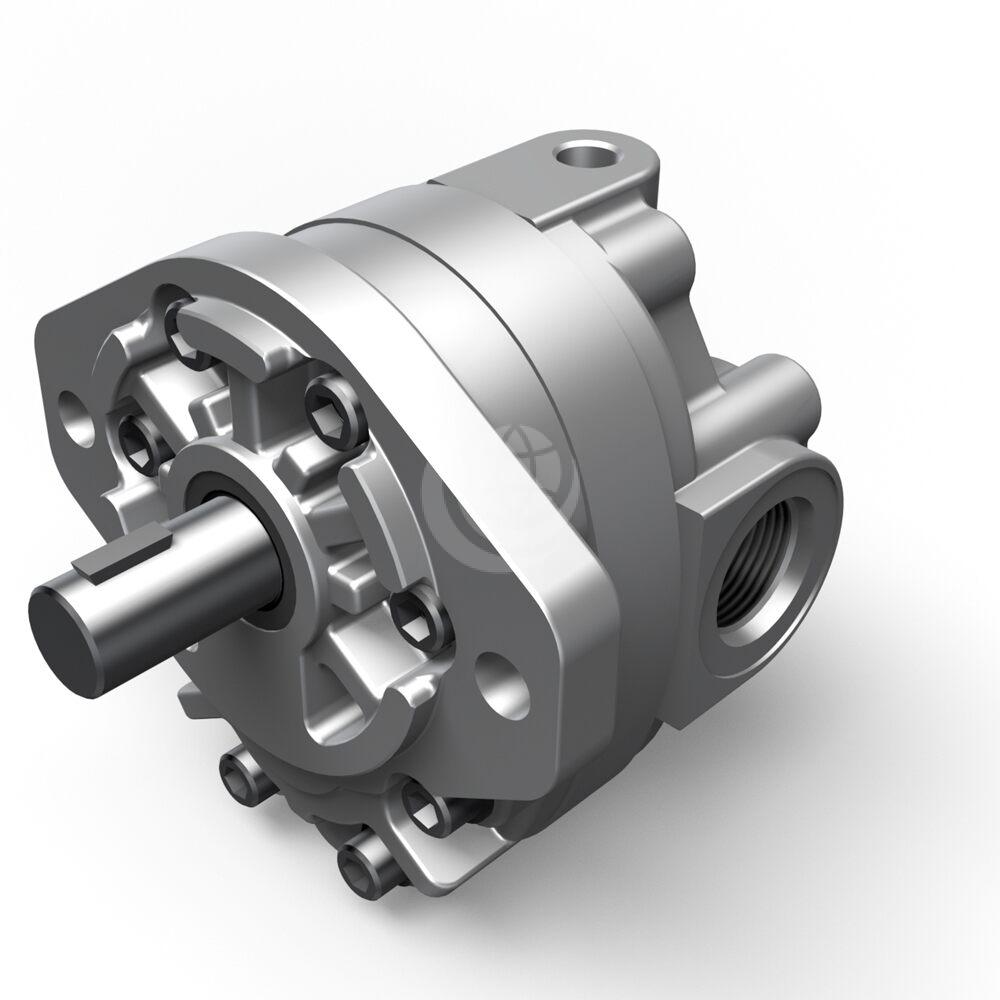

    Parker H Series Pump – Aluminium Gear Pump

    Parker H Series Pump – Aluminium Gear Pump

    Description

    Parker H series pumps were formerly made by Commercial Intertech before they joined the Parker Group. They are fixed displacement, pressure-loaded gear pumps, offering high performance and high power density due to their aluminium construction.

    Features/Benefits:

    • Pressure-loaded, efficient and simple design
    • Compact and lightweight for their capacity
    • Efficient at high-pressure operation
    • Resistant to cavitation effects
    • High tolerance to system contamination
    • Reliable under cold weather operation
    • Sleeve-bearing construction
    • Multi-fluid compatibility
    • Three-piece construction for distribution flexibility
    • Aluminium pumping sections for light weight
    • Journal bushings for long life
    • Pressure balanced thrust blocks for high efficiency
    • Multiple sections available

    Parker H series pumps are available in displacements sizes from 9.8cc/rev to 36.5ccc/rev

    Technical specifications:

    • Flows from 9.5 to 35.2 litres/minute at 1000 rpm
    • Operating pressures up to 172 bar (2,500 psi)
    • Speeds up to 4,000 rpm
    • Clockwise and counter-clockwise pumps available
    • SAE shafts, flanges and porting available
    • Optional pressure relief, and priority flow divider.

    Contact us for further technical details and configuration options.

    Download the Parker H Pump Technical Catalogue >>>
