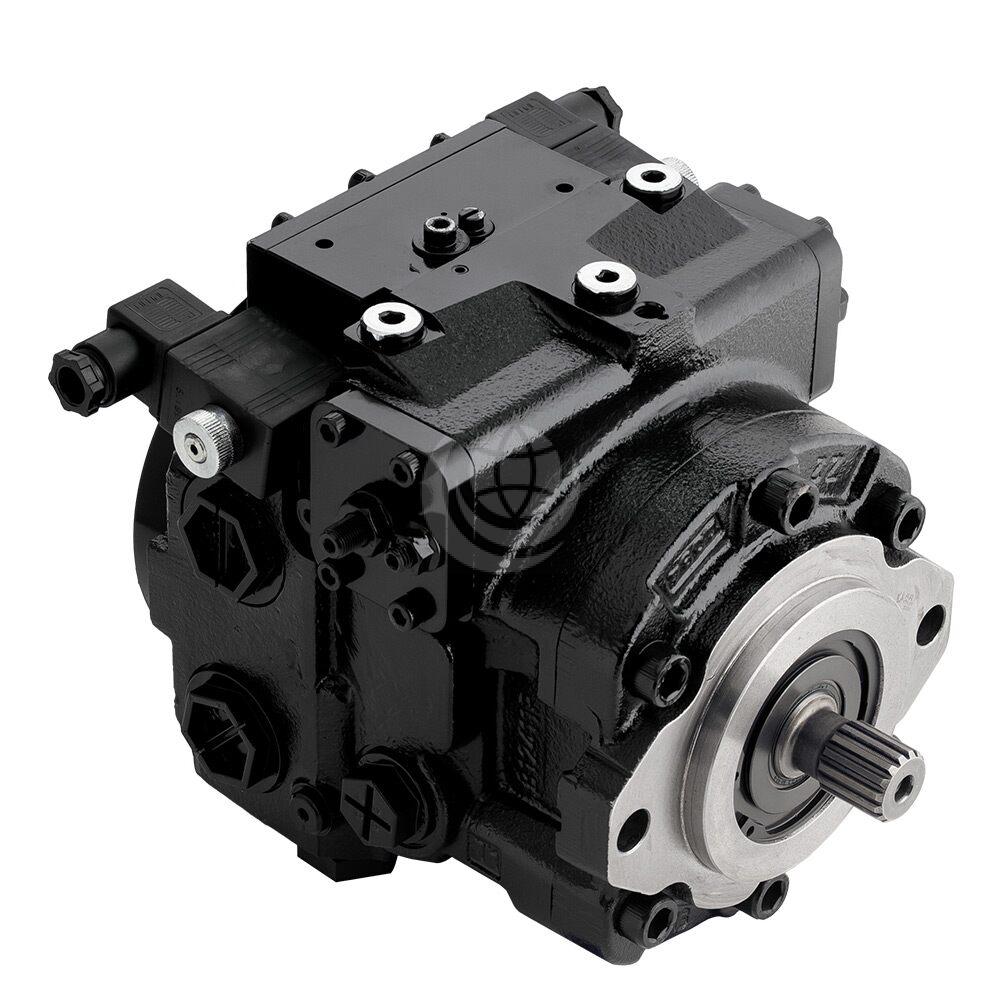

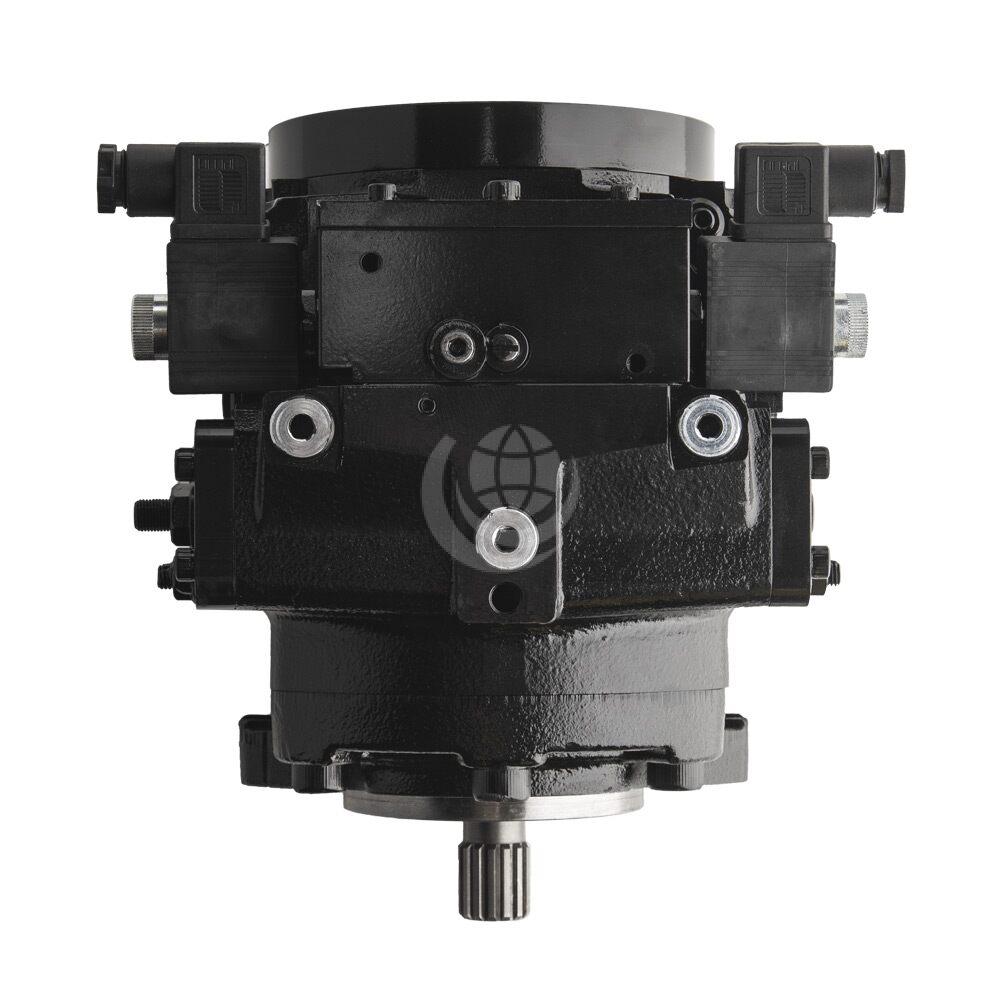

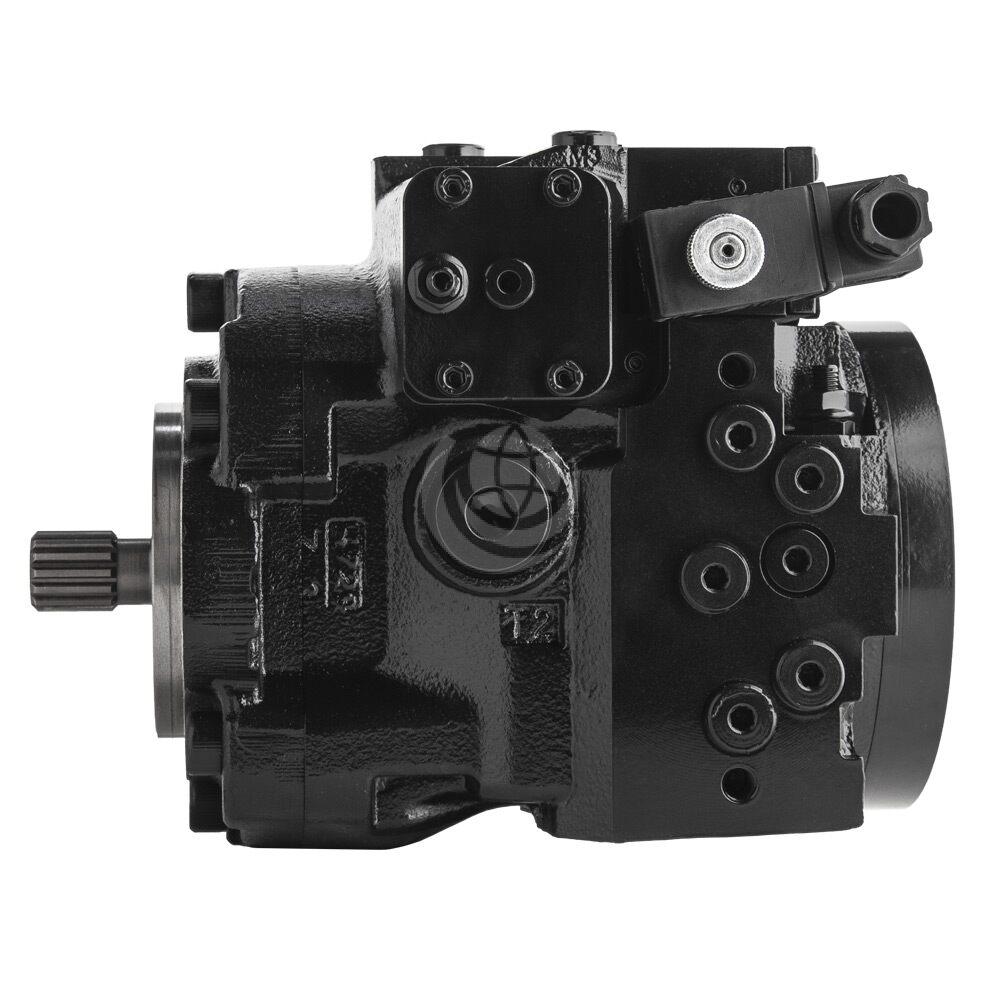

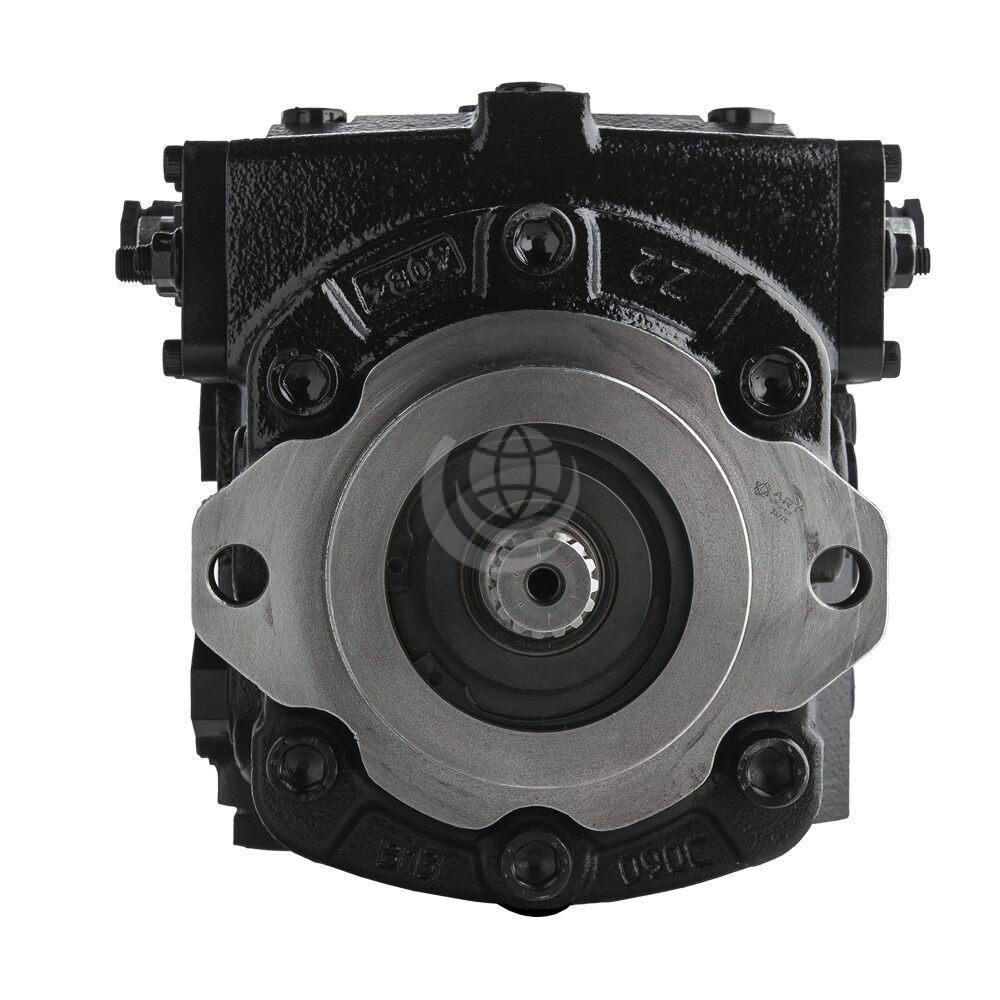

Parker PC3 Pump – Compact, Variable Displacement, Axial Piston


The Parker PC3 pump is a compact, variable displacement axial piston pump for use in closed circuit, medium duty applications.

Flow direction and volume are controlled by a rugged swashplate and bearing design and are rated to 300 bar (4350 psi) continuous pressure.

Parker PC3 pumps are available with reliable and robust controls including:

  • Direct Swashplate manual control
  • Manual Servo control
  • Hydraulic proportional control
  • Electric proportional control

Other features and benefits include:

  • Robust swashplate and bearing design
  • Hydraulic pressure override
  • Built-in hot oil shuttle valve
  • Built-in bypass valve
  • Cross port reliefs for overload protection
  • Modular and interchangeable controls
  • Multiple displacement options
  • Tandem mount available

The PC3 series has a minimum input speed of 3600 rpm and is available in 10 displacements ranging from 7 cc/rev to 52cc/rev: PC3-07 | PC3-11 | PC3-18 | PC3-20 | PC3-25 | PC3-30 | PC3-35 | PC3-40 | PC3-45 | PC3-52

Contact us for further technical details and configuration options.

Download the Parker PC3 Technical Catalogue >>>
