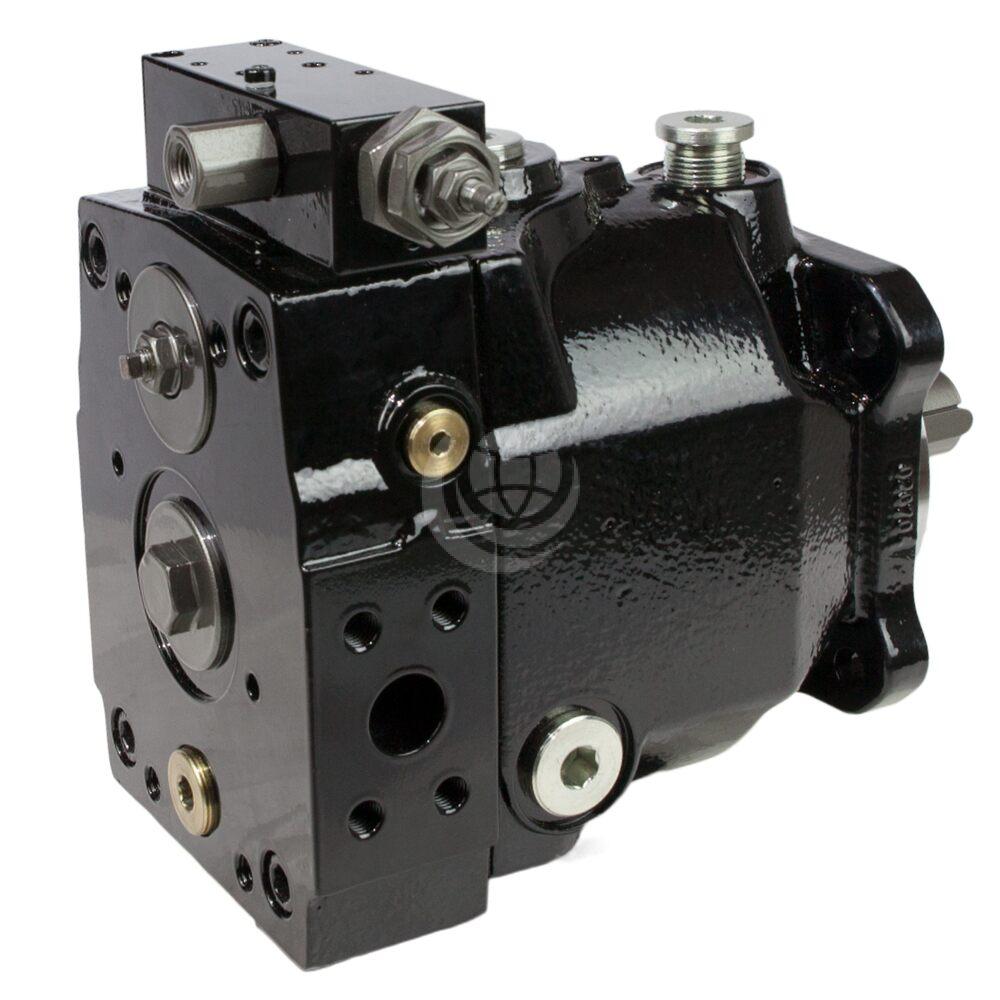

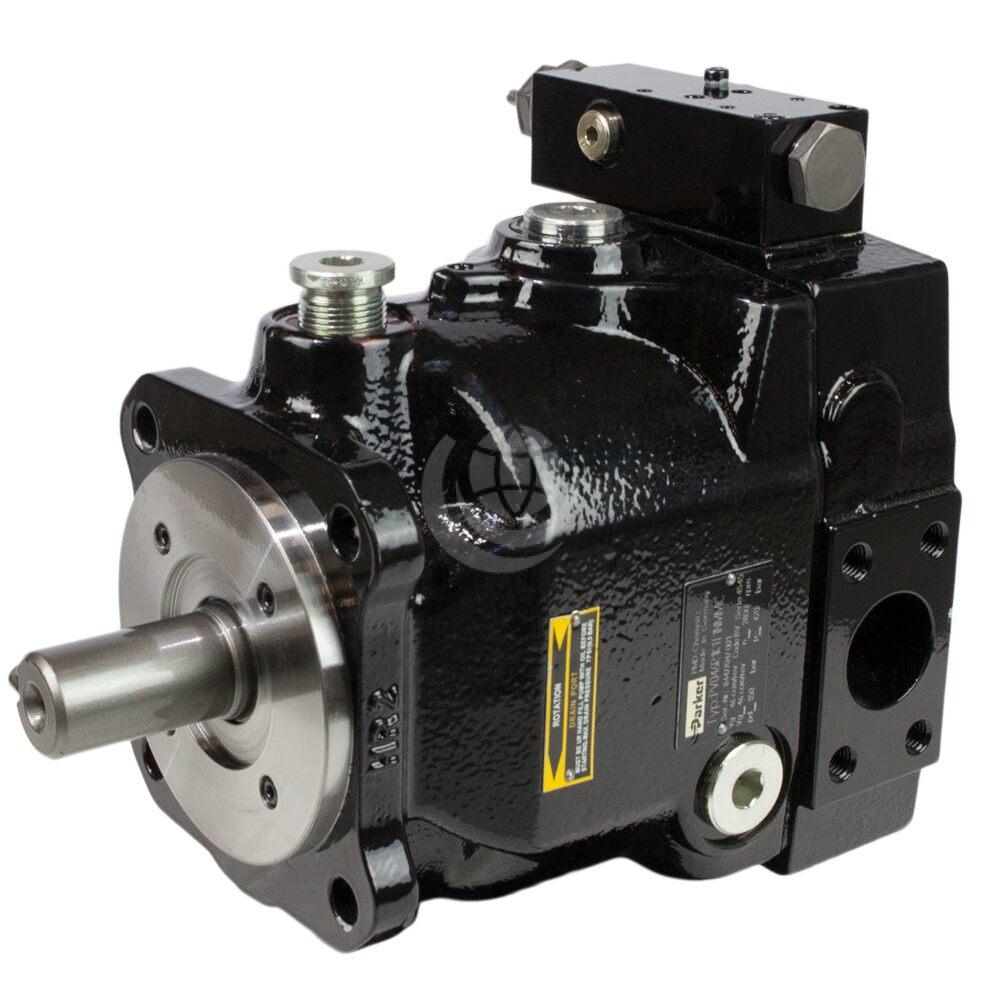

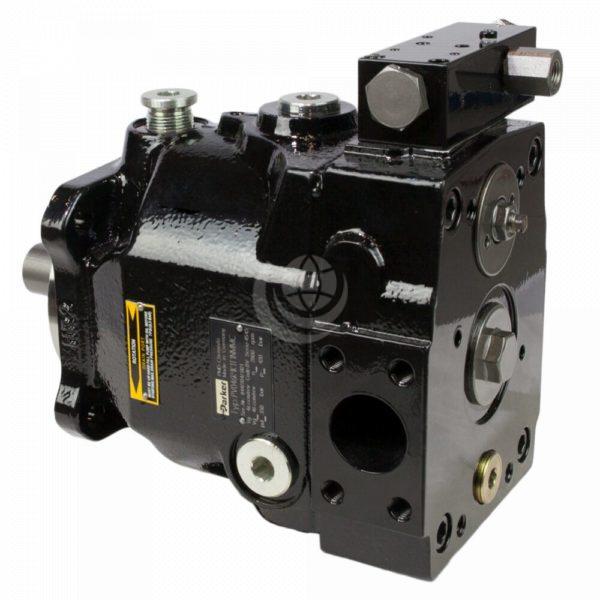

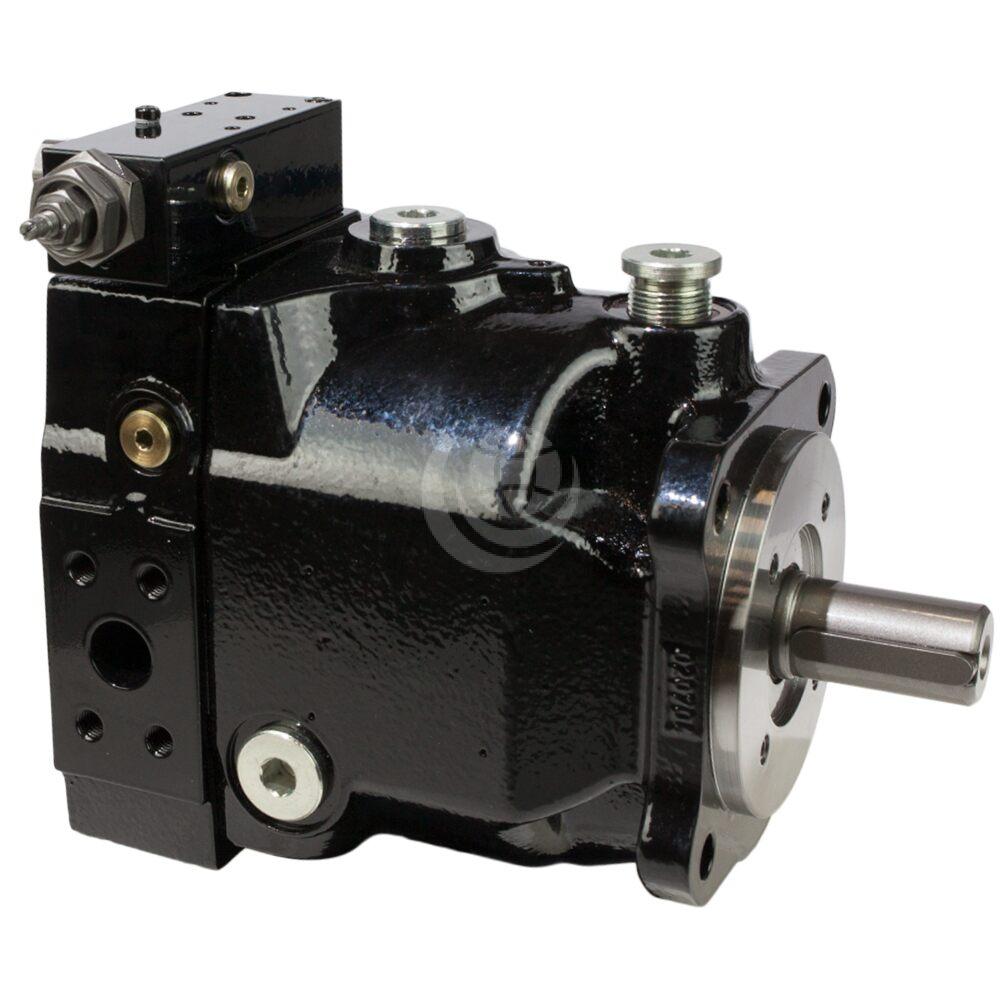

Parker PVplus Pump – Variable Displacement

Description

Parker PVplus pumps are open circuit, variable displacement swash-plate piston pumps. They provide high productivity and power density and are optimised for heavy duty industrial and marine applications.

Displacements range from 16 cc/rev to 360 cc/rev, with operating pressures of up to 420 bar, high speed ratings and a wide range of highly responsive controls.

The full Parker PVplus range comprises:

  • Frame size 1: PV016 | PV020 | PV023 | PV028 | PV032 | PV040 | PV046
  • Frame size 3: PV063 | PV080 | PV092 | PV140 | PV180 | PV270 | PV360

Beside its robustness and exceptionally long service life, the Parker PVplus has a very high conversion flexibility. Every PVplus also comes with an integrated pre-compression volume as standard which ensures low ripple operation and reduced noise emissions.

Features and benefits:

  • Operating pressures of up to 350 bar (continuous) / 420 bar (intermittent) – see the technical details tab
  • Accurate, highly dynamic controls – outstanding response characteristics and productivity improvements
  • Excellent suction characteristics and high self-priming speeds – increased productivity
  • Integrated pre-compression volume – reduced pulsation and noise level
  • Robust, heavy duty design – long lifetime and service intervals
  • Modular approach and frame size design – easy conversion and reduced inventory expenditures
  • HFC capability up to 210 bar – suitable for usage in open circuit hydraulic systems where fire-resistant fluids are required
  • Low noise level
  • Fast response
  • Compact design
  • Thru drive for 100% nominal torque for single and multiple pumps

Contact us for further technical details and configuration options.

Download the Parker PVPlus Technical Catalogue >>>

 PV016PV020PV023PV028PV032PV040PV046
Frame Size 1111111
Max displacement (cm³/rev)16202328324046
Output flow at 1500 rpm (l/min)243034.542486069
Nominal pressure (bar)350350350350350350350
Minium outlet pressure (bar)15151515151515
Max presure at 20% working cycle420420420420420420420
Case drain pressure, continuous (bar)0.50.50.50.50.50.50.5
Case drain pressure, max peak (bar)2222222
Min inlet pressure, abs (bar)0.80.80.80.80.80.80.8
Max inlet pressure (bar) 16161616161616
Input power at 1500 rpm, 350 bar (kW)15.519.522.527.5313945
Max speed at 1 bar abs, inlet pressure (rpm)3000300030003000280028002800
Minium speed (rpm)50505050505050
Weight (kg) 19191919303030



 PV063PV080PV092PV140PV180PV270PV360
Frame Size 3333333
Max displacement (cm³/rev)638092140180270360
Output flow at 1500 rpm (l/min)94.5120138210270405540
Nominal pressure (bar)350350350350350350350
Minium outlet pressure (bar)15151515151515
Max presure at 20% working cycle420420420420420420420
Case drain pressure, continuous (bar)0.50.50.50.50.50.50.5
Case drain pressure, max peak (bar)2222222
Min inlet pressure, abs (bar)0.80.80.80.80.80.80.8
Max inlet pressure (bar) 16161616161616
Input power at 1500 rpm, 350 bar (kW)61.57889.5136175263350
Max speed at 1 bar abs, inlet pressure (rpm)2800250023002400220018001750
Minium speed (rpm)50505050505050
Weight (kg) 5959599090172180
