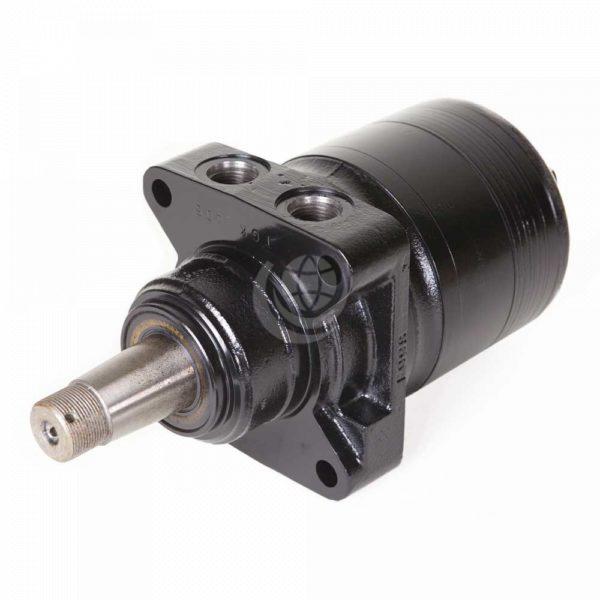

    Parker TGK Motor – Heavy Duty Gerotor Motor

    Parker TGK Motor – Heavy Duty Gerotor Motor

    Description

    The Parker TGK motor is a robust, low speed, high torque orbital motor. It provides up to 66% greater torque capacity for superior power density and is ideal for heavy duty applications.

    Its high power density allows for higher HP applications in a smaller space and reduces machine weight as well.

    The Parker TGK motor is a compact motor with the performance of much larger motors. It is available in 15 displacements from 110 cc/rev to 989 cc/rev: TGH0110 | TGH0140 | TGH0170 | TGH0195 | TG0240 | TGH0280 | TGH0310 | TGH0335 | TGH0360 | TGH0405 | TGH0475 | TGH0530 | TGH0625 | TGH785 | TGH0960

    Features and benefits:

    • Shaft size to 1.5 inch
    • Intermittent pressures to 4,000 psi
    • Robust construction for longer life
    • Continuous oil flow across internal splines for longer life
    • Superior side load capacity
    • Smooth, extra low speed operation
    • High pressure shaft seal as standard
    • Innovative design eliminates the need for a case drain
    • Dependability based on high quality design and manufacturing

    Contact us for further technical details and configuration options.

    TGK Series Motor01100140017001950240028003100335036004050475053006250785960
    Displacement (cm³/rev)110141169195238280310337360405477529623786959
    Max speed (rev/min)672660554477393334303277263232237231182143118
    Max cont. oil flow (l/min)767676767676767676767676767676
    Max int. oil flow (l/min)95959595959595959595114114114114114
    Max cont. pressure (bar)241241241241241241241241241241241224190152124
    Max int. pressure (bar)276276276276276276276276276276276259224186159
    Max supply pressure (bar)300300300300300300300300300300300300300300300
    Max cont. torque (Nm)373474578671794936103711281205135315931643163516521647
    Max int. torque (Nm)426536467539131073122912971377154618211895193220282105
