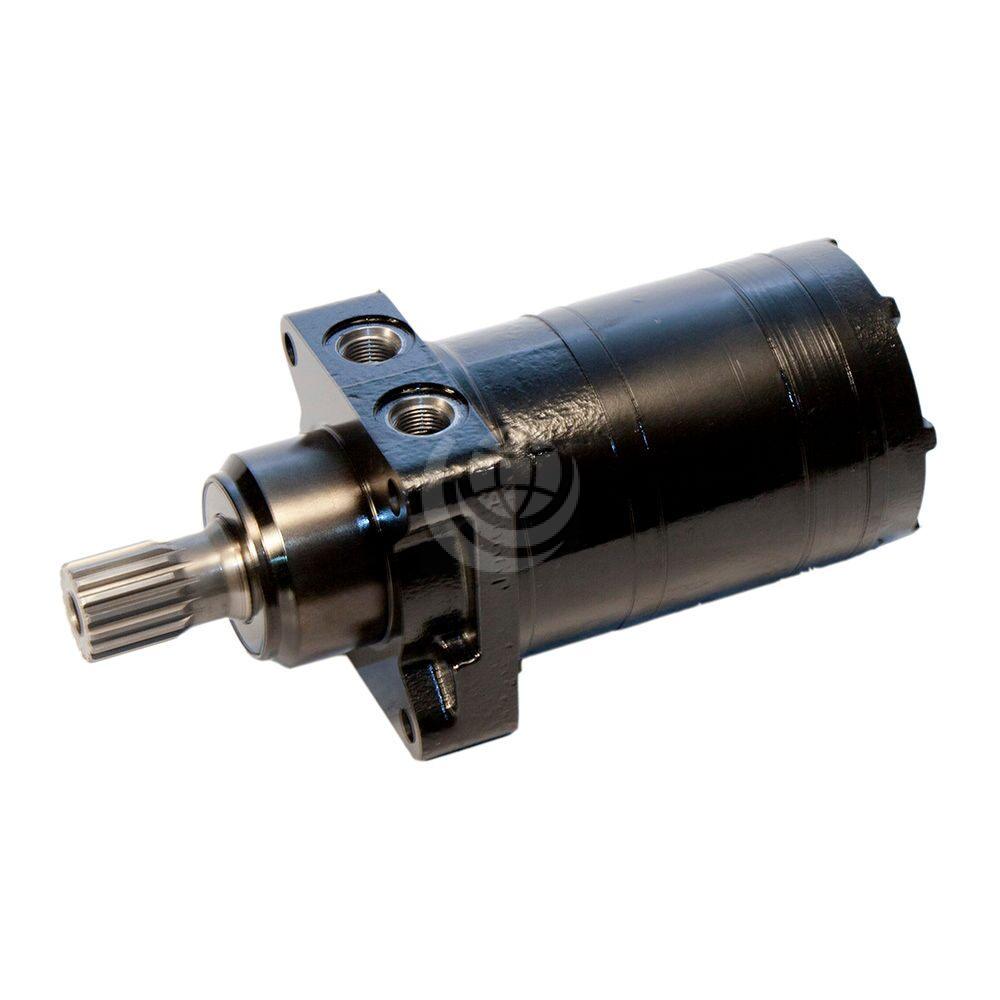

    Parker TH Series – Medium Duty Gerotor Motor

    Parker TH Series – Medium Duty Gerotor Motor

    • Description
    • Technical Data

    Description

    The Parker TH Series Torqmotor™ is a durable hydraulic motor with superior side load capacity, high pressure shaft seal and smooth low speed operation.

    It is ideal for heavy duty applications such as vehicle propulsion, augers, chain drives and winches. It has a 38.1 mm nominal shaft size. Torques to 1490 Nm and intermittent pressure up to 280 bar.

    The Parker TH series is available in 14 displacements from 141 cc/rev to 959 cc/rev: TH0140 | TH0170 | TH0195 | TH0240 | TH0280 | TH0310 | TH0335 | TH0360 | TH0405 | TH0475 | TH0530 | TH0625 | TH0785 | TH0960

    Features and benefits include:

    • Flange mounts carry up to 35586 N dynamic side load at the key
    • Wheel mounts carry up to 33360 N dynamic side load at the key
    • Robust construction for longer life
    • Continuous oil flow across internal splines for longer life
    • Superior side load capacity
    • Smooth, extra low speed operation
    • High pressure shaft seal as standard
    • Innovative design eliminates the need for a case drain
    • Dependability based on high quality design and manufacturing

    Contact us for further technical details and configuration options.

    TH Motor01400170019502400280031003350360040504750530062507850960
    Displacement (cm³/rev)1411691952382803103373604005477528623786959
    Max speed (rev/min)660554477393334303277259232237213182143118
    Max cont. oil flow (l/min)7676767676767676767676767676
    Max int. oil flow (l/min)959595959595959595114114114114114
    Max cont. pressure (bar)20720720720720720720717217213813812110369
    Max int. pressure (bar)276276276276276276276241241207172155138103
    Max supply pressure (bar)300300300300300300300300300300300300300300
    Max cont. torque (Nm)3904765566777969649248949428879839861044773
    Max int. torque (Nm)5306467539131073129712291253134213721253129114281268
