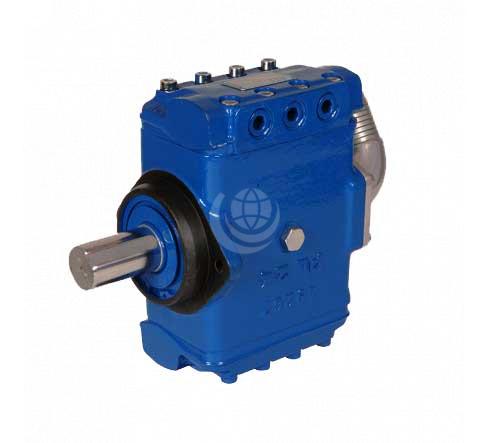

    Poclain PL2H Axial Piston Pumps

    Poclain PL2H Axial Piston Pumps

    Description

    Poclain PL2H pumps are heavy duty, open loop and fixed displacement reciprocating axial piston pumps. They have 2 independent flows, or outputs.

    There are 6 displacements from 35 cc/rev to 64 cc/rev: PL2H14-175 | PL2H14-200 | PL2H14-220 | PL2H14-250 | PL2H14-285 | PL2H14-320

    Across the series, maximum continuous speed ranges from 2100 to 2700 rpm, with intermittent speeds from 2400 rpm to 3100 rpm. Continuous pressure is 350 bar (5076 psi), with intermittent pressure 450 bar (6527 psi).

    Maximum continuous power is 55kW to 78 kW and intermittent is 81kW to 115kw. Maximum pressure is 450 bar (6526 psi), maximum speed is 3000 rpm.

    Download the Poclain PL2H Technical Catalogue >>>

    Contact us for further technical details and configuration options.
