Description

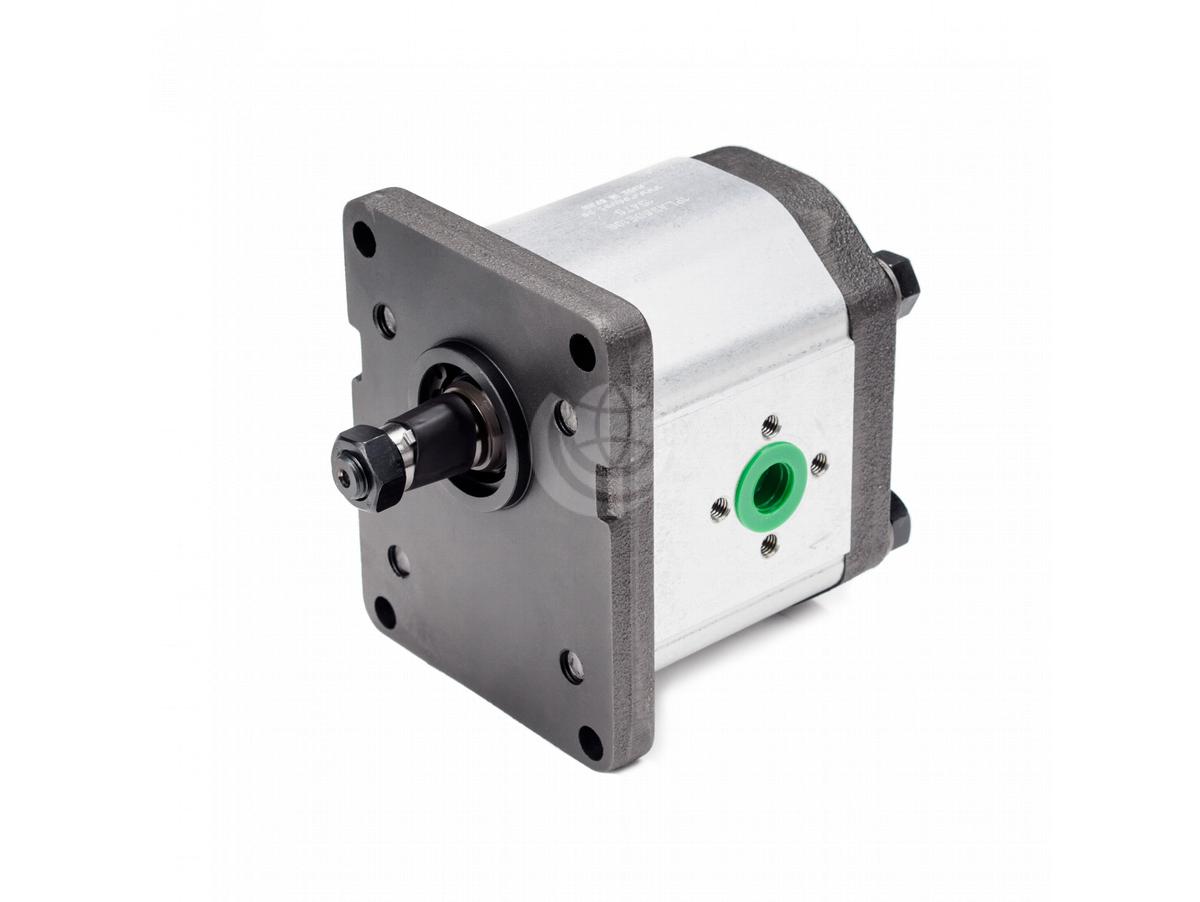

Roquet Group 2 L series gear pumps and ML series motors offer reduced noise, increased life and have optional built-in valves for speed control, etc.
Made from aluminium, Roquet Group 2 – L series pumps and ML series motors are available in a range of displacements: 4.0 | 6.0 | 8.0 | 10.6 | 12.0 | 14.6 | 16.0 | 18.0 | 23.3 | 26.6 and offer flow rates of 6 litres/minute to 40 litres/minute at 1500 rpm.
- Side ports threaded G as standard
- Oil viscosities between 20-80 cSt, at working pressure and 50° C
- Oil temperature range: – 20°C to + 80°C
- Recommended suction line filtration: 125 micron minimum
- Recommended return line filtration: 25 micron minimum
- Rotation: clockwise or counter-clockwise when facing the shaft end.
Contact us for further technical details and configuration options.
