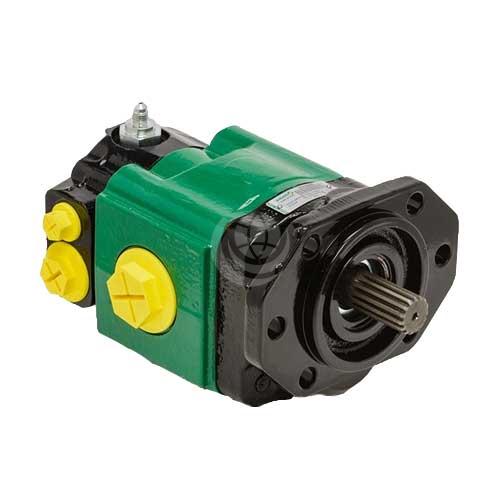

Salami PG330 Gear Pump – Internal Drain

Cast Iron Gear Pumps – Bearing Series

Description

Salami PG330 (reversible pumps with internal drain – truck release) spheroidal cast iron gear pumps have an internal drain to avoid external piping. Moreover the bodies are always machined with side and rear ports. The pump is available in the following model types: 23, 28, 34, 40, 47, 55, 64, 72 and 80.

Salami PG330 technical specifications:

  • displacements range from 23.4cm3 / rev to 80.6 cm3 / rev
  • working pressure at P1 ranges from 260 bar / 3800 psi to 200 bar / 2900 psi
  • weight ranges from 12.77kg to 17.69kg
  • intermittent pressure at P2 ranges from 280bar / 4000 psi to 220 bar / 3200 psi
  • peak pressure at P2 ranges from 300 bar / 4350 psi to 240bar / 3500 psi
  • maximum speed at P2 ranges from 3000 rpm to 2500 rpm
  • maximum speed at P1 ranges from 400 rpm to 350rpm.

Contact us for further technical details and configuration options.
