Welded Hydraulic Cylinders

Compact, Durable, and Built for Demanding Applications

Our Series HOL-W welded hydraulic cylinders, manufactured here in the UK, are designed to meet the requirements of ISO 6020/2 – 1991 and DIN 24554 standards. With their heavy-duty construction, wide range of mounting styles, and fully customisable design features, welded cylinders are ideal for a broad spectrum of industrial, mobile, and marine applications.

At Hydraulics Online, we supply both standard welded hydraulic cylinders from trusted brands and custom-designed cylinders tailored to your exact operating parameters and application needs.

Our website shows only a selection of what we supply. For impartial advice and access to our full range of hydraulic components, contact our expert team.

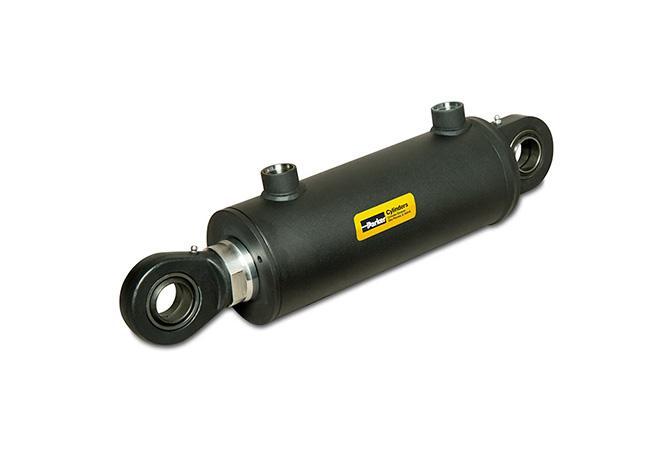

Welded Hydraulic Cylinder. For impartial advice and access to our full range of hydraulic components, contact our expert team.

Welded body hydraulic cylinders have no tie rods. Instead, the barrel is welded directly to the end caps, while the ports are welded to the barrel. The front rod gland is typically threaded into or bolted to the cylinder barrel, allowing the piston rod assembly and rod seals to be removed for service.

This construction method offers several advantages over tie rod style cylinders:

Compact design – welded cylinders have a narrower body and often a shorter overall length, making them easier to fit into tight machinery spaces.
High-pressure durability – they do not suffer from tie rod stretch at high pressures or long strokes.
Customisation-friendly – the welded design allows special features to be added directly to the cylinder body, such as custom ports, mounts, or valve manifolds.
Smooth outer body – ideal for designing multi-stage telescopic cylinders.

Our welded hydraulic cylinders can be supplied with:

Internal full displacement positional transducers
End-of-stroke sensors
Control valve packages – valves built directly into the cylinder endcap or manifolded onto the cylinder

All cylinders are tested to 1.5x their designed working pressure. Standard finish is satin black enamel paint, but cylinders can also be supplied with plated, shotblasted, or marine-specification coatings for enhanced corrosion resistance.

Welded cylinders are widely used in:

Mobile machinery (construction, agriculture, forestry)
Industrial automation and process control
Marine and offshore hydraulic systems
Energy and utility installations
Material handling and lifting equipment

They are particularly valuable in systems requiring compact, durable cylinders with high performance under continuous operation.

We can provide you with standard and custom-made welded hydraulic cylinders to suit your specific application, requirements, and operating parameters.

Key features include:

Compact design – shorter overall length compared to tie rod cylinders.
Heavy-duty construction – robust build for demanding environments.
Customisable mounting styles – adaptable to a wide range of applications.
3D design integration – cylinder models can be exported directly into your machine design.
Precision manufacturing – CNC-machined components ensure interchangeability and responsive lead times.
Generous internal bearing lengths – for durability and extended service life.
Proven sealing systems – choice of seal types and materials to suit operating conditions.
End-of-stroke cushioning – available at either or both ends for smooth operation.

Learn more about our custom hydraulic cylinders and actuators here and complete our Bespoke Hydraulic Cylinder Design Form here to enquire about tailored solutions. Once you’ve submitted your design form, one of our hydraulic engineers will get back to you promptly to confirm your requirements in full.

How do welded cylinders differ from tie rod cylinders? Welded cylinders have end caps welded directly to the barrel, making them more compact and durable, while tie rod cylinders are easier to disassemble for service.

Can welded cylinders be customised? Yes, we design and supply bespoke cylinders tailored to your operating parameters.

Are welded cylinders suitable for heavy-duty applications? Absolutely, they are widely used in mobile and industrial systems where strength and compactness are essential.
