Cartridge Flow Divider / Combiner Valves

Precision Flow Management in Compact Form

Cartridge flow divider / combiner valves are designed to accurately split or combine hydraulic flow within a compact, manifold‑ready cartridge format. These multifunction valves help maintain balanced actuator movement, synchronise circuits, and manage flow direction under varying load conditions all while reducing system complexity.

At Hydraulics Online, we supply a wide range of cartridge flow divider / combiner valves from trusted global manufacturers, with impartial advice to help you select the right solution for your hydraulic system.

Our website shows only a selection of what we supply. For impartial advice and access to our full range of hydraulic components, contact our expert team.

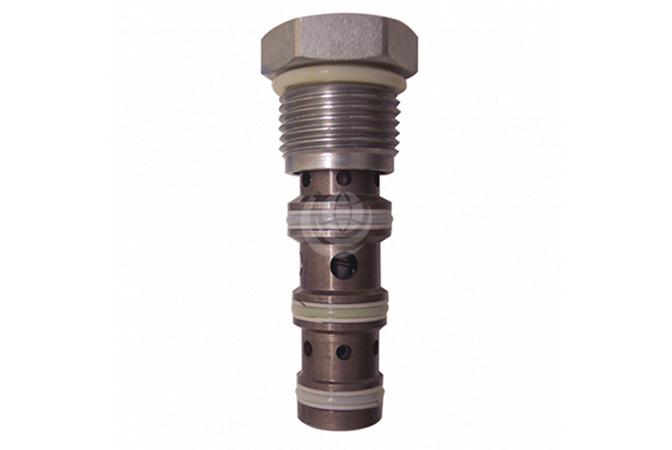

Cartridge Flow Divider : Combiner Valves product category header. For impartial advice and access to our full range of hydraulic components, contact our expert team.

Cartridge flow divider / combiner valves are hydraulic components that either divide a single flow into two proportional outputs or combine two flows into one. Their ability to perform both functions makes them ideal for systems requiring synchronisation or load‑independent flow control.

Key features include:

Flow division and combination – maintains proportional flow in both directions.
Load‑independent performance – compensates for pressure differences between circuits.
Compact cartridge design – integrates easily into hydraulic manifolds.
High‑pressure capability – suitable for demanding mobile and industrial applications.
Versatile configurations – available in multiple flow ratios, sizes, and pressure ratings.

These valves are essential for applications where balanced actuator movement or controlled flow sharing is required.

Precise flow control – ensures consistent actuator speed and synchronisation.
Bidirectional functionality – divides flow in one direction and combines it in the other.
Space‑saving installation – compact cartridge format reduces external plumbing.
Improved system efficiency – minimises energy loss and enhances circuit stability.
Reliable performance – maintains accuracy even under fluctuating loads and pressures.
Extended component life – reduces mechanical stress on actuators and pumps.

These valves are widely used in hydraulic systems requiring proportional flow management, including:

Their ability to maintain proportional flow makes them especially valuable in systems with unequal loads or varying operating conditions.

We supply a broad range of configurations, including:

Spool‑type flow divider / combiners – ideal for high‑pressure, load‑sensitive applications.
Multi‑function cartridges – combining flow division, combination, and pressure compensation.
Various flow ratios – from equal division to custom proportional splits.

If you’re unsure which type best suits your system, our technical team can help you specify the correct valve based on flow, pressure, and performance requirements.

What’s the difference between a flow divider and a flow divider / combiner?
A divider / combiner performs both functions: dividing flow in one direction and combining it in the other, making it more versatile for bidirectional circuits.

Can these valves synchronise hydraulic cylinders?
Yes. They are commonly used to maintain equal movement between actuators, even under unequal loads.

Are cartridge flow divider / combiners suitable for high‑pressure systems?
Absolutely. Many models are designed for high‑pressure mobile and industrial applications.
