Cartridge Piloted 3 Way Spool Valves

Compact Directional Control Solutions

Cartridge piloted 3 way spool valves are designed to provide precise directional control of hydraulic fluid flow within compact, integrated systems. By combining spool valve functionality with cartridge-style installation, they offer reliable performance, easy integration, and flexibility across a wide range of hydraulic applications.

At Hydraulics Online, we supply a wide range of cartridge piloted 3 way spool valves from trusted global manufacturers – including HydraForce and many others – with impartial advice to help you select the right solution for your system.

Our website shows only a selection of what we supply. For impartial advice and access to our full range of hydraulic components, contact our expert team.

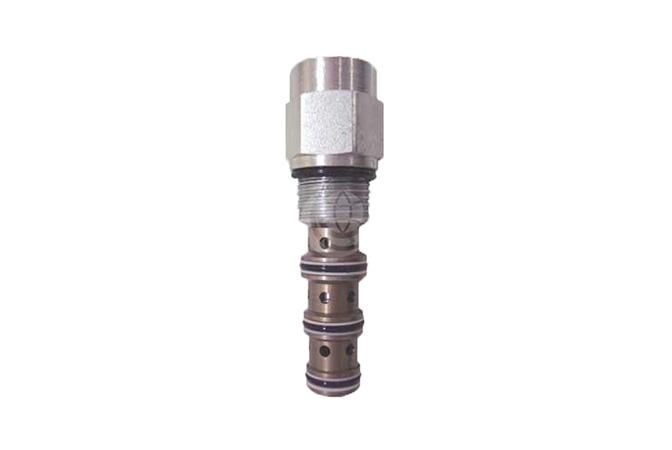

Cartridge Piloted 3 Way Spool Valve. For impartial advice and access to our full range of hydraulic components, contact our expert team.

These valves are a type of cartridge valve that use a spool mechanism to direct hydraulic flow between three ports. They are piloted, meaning they are actuated by hydraulic pressure rather than manual or electronic input, making them ideal for automated or load-dependent systems.

Key features include:

Hydraulic pilot actuation – controlled by system pressure for smooth, responsive operation.
3-way spool design – directs fluid between three ports for versatile circuit control.
Compact cartridge format – fits directly into hydraulic manifolds for space-saving installation.
Durable construction – engineered for continuous use in demanding environments.
Versatile configurations – available in multiple sizes, flow capacities, and pressure ratings.

Reliable directional control – ensures smooth switching between hydraulic circuits.
Space-saving design – compact cartridge format reduces system complexity.
Improved efficiency – hydraulic pilot actuation provides responsive, load-sensitive control.
Extended equipment life – reduces wear and mechanical stress on components.
Cost-effective solutions – robust design with minimal maintenance requirements.

Cartridge piloted 3-way spool valves are widely used in industries and applications including:

Construction and agricultural machinery
Industrial automation and process control
Marine and offshore hydraulic systems
Mining and heavy industry equipment
Energy and utility installations

They are particularly valuable in systems where compact, reliable directional control is required under varying load conditions.

What makes piloted spool valves different from manually operated spool valves? Piloted spool valves use hydraulic pressure for actuation, offering smoother and more responsive control.

Can cartridge piloted 3 way spool valves be used in mobile equipment? Yes, they are widely used in mobile and agricultural machinery where compact, pressure-actuated control is essential.

Do these valves require much maintenance? Minimal – their robust cartridge design ensures long service life with straightforward upkeep.
