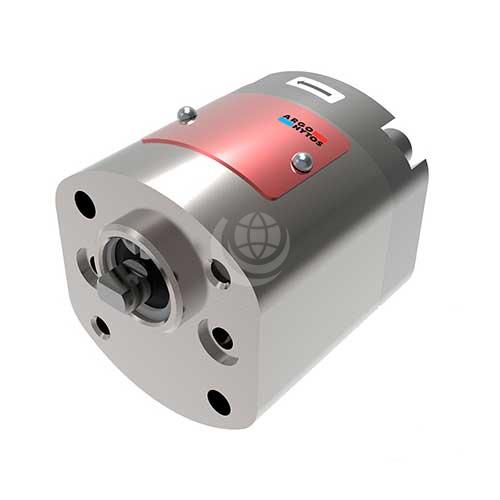

Argo Hytos GP0L Gear Pump

Description

In both assembly and production, Argo Hytos work with a certified quality management system. This guarantees maximum product quality. Argo Hytos GP0L gear pumps are a high quality aluminium (for durability), external gear pump with axial play compensation.

This series of gear pumps are for use in circuits with a lower – normal operating pressure. These gear pumps have identical displacement volumes as the respective models of the main series. However, Argos Hytos have developed the Lightline variants specifically for low operating pressure. For this reason, however, they are not suitable for operation with multiple arrangements like the main series.

They are for use in circuits with a lower operating pressure and are not designed to be used in combination.

The GP0L series is available in 6 displacements from 0.26 cc/rev to 0.88 cc/rev: GP0L 025 | GP0L 032 | GP0L 040 | GP0L 050 | GP0L 063 | GP0L 080

Maximum continuous pressure is 200 bar and peak pressure is 250 bar. Minimum speed is 500 rpm, maximum is 7000 rpm.

These pumps have a volumetric efficiency of up to 96%

Download the Argo Hytos GP0L Technical Catalogue >>>

Contact us for further technical details and configuration options – our technical team will be delighted to help!
