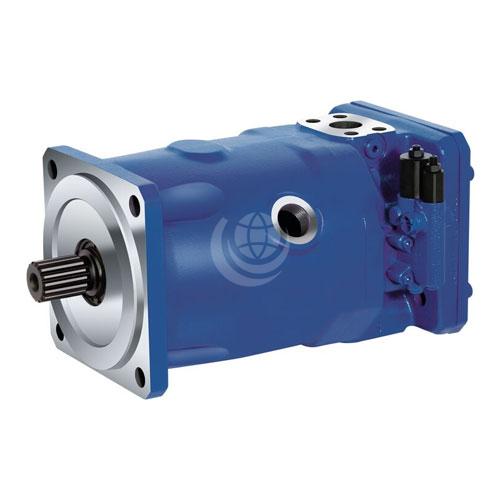

Bosch Rexroth A10VSO Piston Pump – Series 32

Description

Bosch Rexroth A10VSO series 32 pump is a medium pressure, variable displacement axial piston pump. It has a swash plate design for use in open circuit hydrostatic drives in high power machines. Flow is proportional to the drive speed and the displacement; by adjusting the swashplate, the flow can be changed seamlessly.

The pump is available in the following sizes: 45 | 71 | 100 | 140 | 180 cc/rev. Nominal pressure is 280 bar and maximum pressure is 350 bar.

Other features of the Bosch Rexroth A10VSO series 32 axial piston pump include:

  • Through drive for mounting of further pumps up to same nominal size;
  • Approved for high speeds;
  • Increased functional reliability;
  • Hydrostatic unloading of cradle bearings;
  • Large variety of controls;
  • Low operating noise;
  • Connection for measuring sensor on the high-pressure port;
  • Low pressure pulsation;
  • High efficiency;
  • Universal through drive;
  • Low pressure pulsation;
  • High resistance to cavitation, suction pressure drops and housing pressure peaks.

Contact us for further technical details and multiple pump configuration options.

Download the Bosch Rexroth A10VSO Series 32 Technical Catalogue>>>
