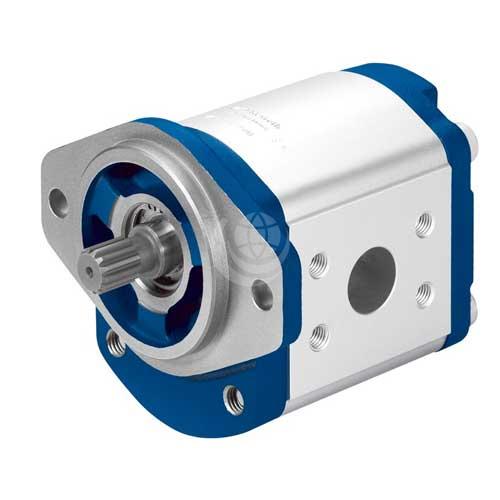

    Bosch Rexroth AZMG Gear Motor

    Description

    Bosch Rexroth AZMG gear motors are asymmetrically designed, i.e. they have fixed displacement high-pressure and low-pressure sides. This means reversing operation is not possible. Motors require a special start-up sequence to ensure good efficiency. Any leakage oil is drained internally. The shaft seal limits drainage pressure.

    AZMG motors are available in displacement sizes: 22 | 32 | 45  cc/rev. Continuous pressure is up to 250 bar and intermittent pressure is up to 280 bar.

    Other features of the Bosch Rexroth AZMG motor include:

    • Platform G;
    • Long service life;
    • Wide speed range from 500 rpm to 3000 rpm;
    • Slide bearings for high loading;
    • Numerous configuration variants available;
    • Output shafts according to ISO or SAE and customer-specific solutions;
    • Line connection: Connection flanges;
    • High pressures though small installation space and low weight;
    • Wide viscosity and temperature range.

    Contact us for further technical details and configuration options.

    Download the Bosch Rexroth AZMG Technical Catalogue >>>
