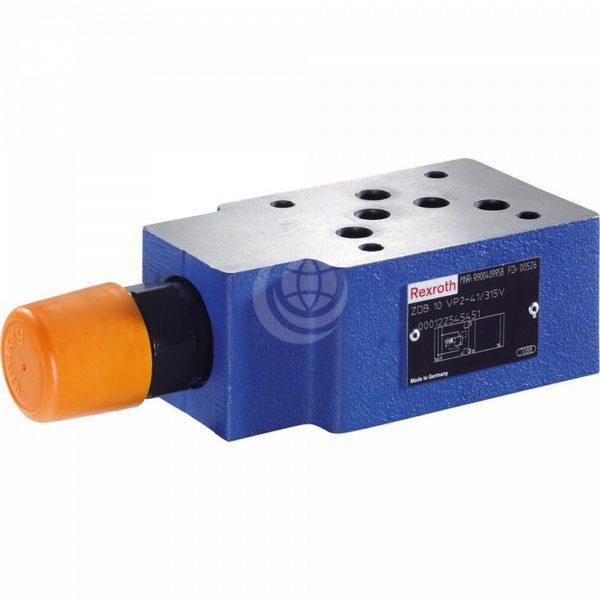

Bosch Rexroth ZDB10 Z2DB10 Pressure Relief Valve


Bosch Rexroth ZDB10 and Z2DB10 valves are pilot-operated pressure relief valves with a sandwich plate design. They are used to limit a system inlet pressure to a specified maximum value. If this adjustable maximum value is reached, the pressure relief valve will return the excess flow to the tank.

The valve has a maximum operating pressure of 315 bar and a maximum flow of 100 litres/minute.

Other features of the Bosch Rexroth ZDB10 and Z2DB10 valve include:

  • Size 10
  • Component series 4X
  • ISO 4401 porting pattern;
  • 4 pressure ratings;
  • 6 circuit options;
  • With 1 or 2 pressure valve cartridges;
  • 4 adjustment options for pressure adjustment:
    • Rotary knob
    • Sleeve with hexagon and protective cap
    • Lockable rotary knob with scale
    • Rotary knob with scale
  • Corrosion-protected design.

Contact us for further technical details.
