Casappa Formula FP Series Gear Pumps and Motors

Casappa Formula FP Series Gear Pumps

Description
TECHNICAL DATA

Description

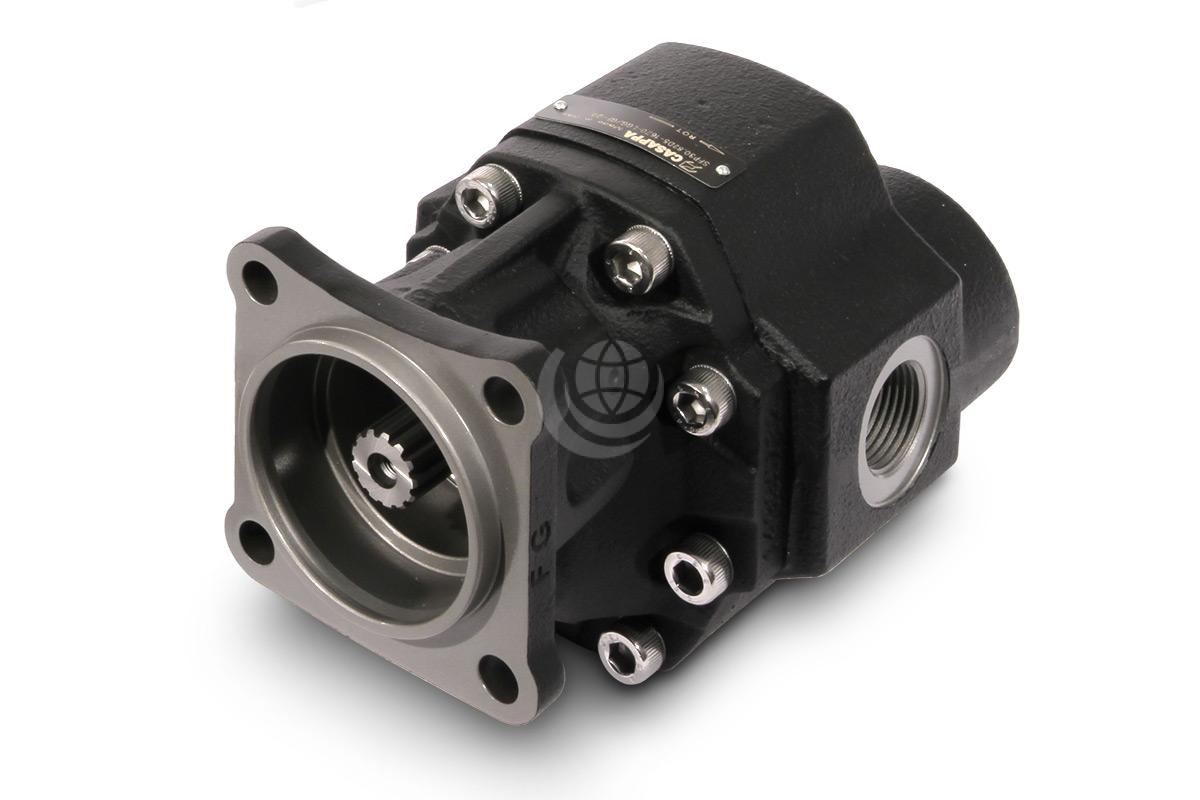

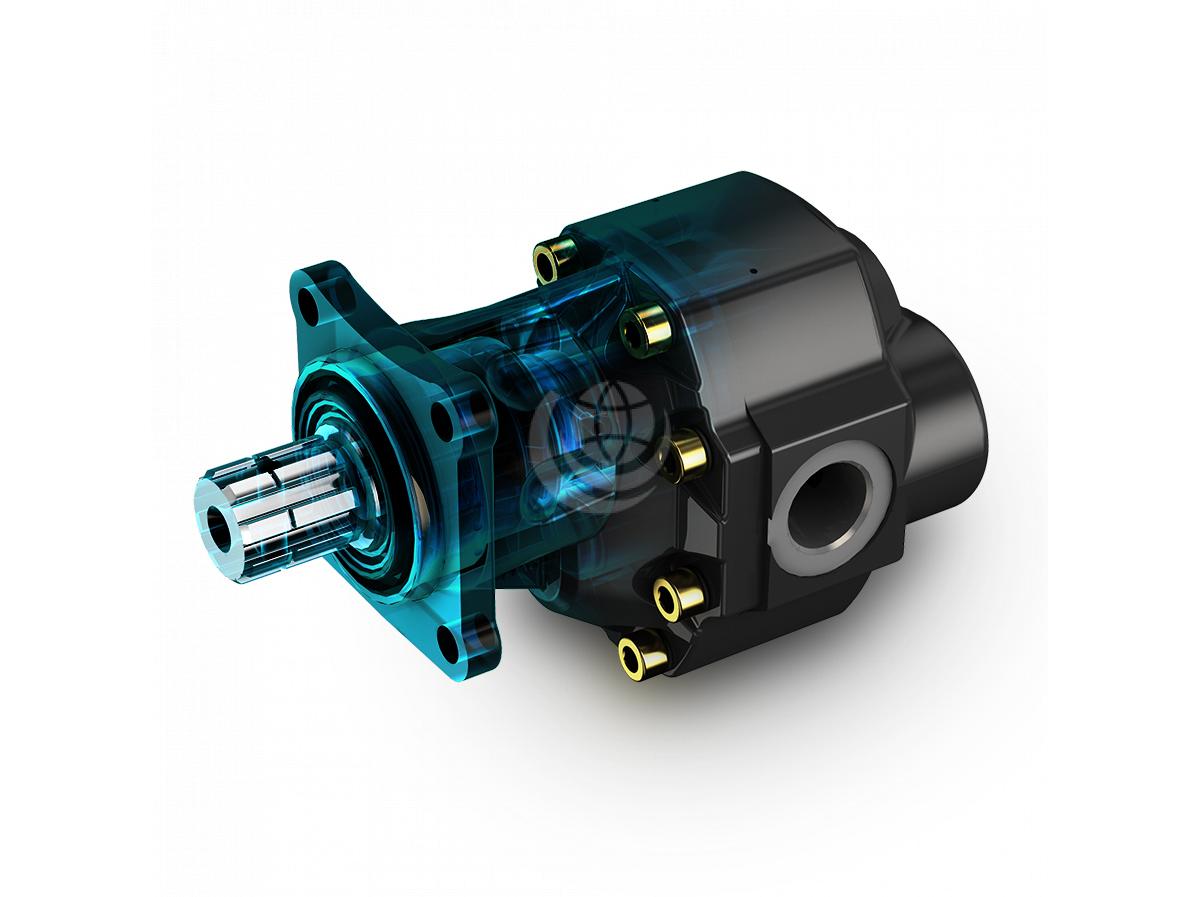

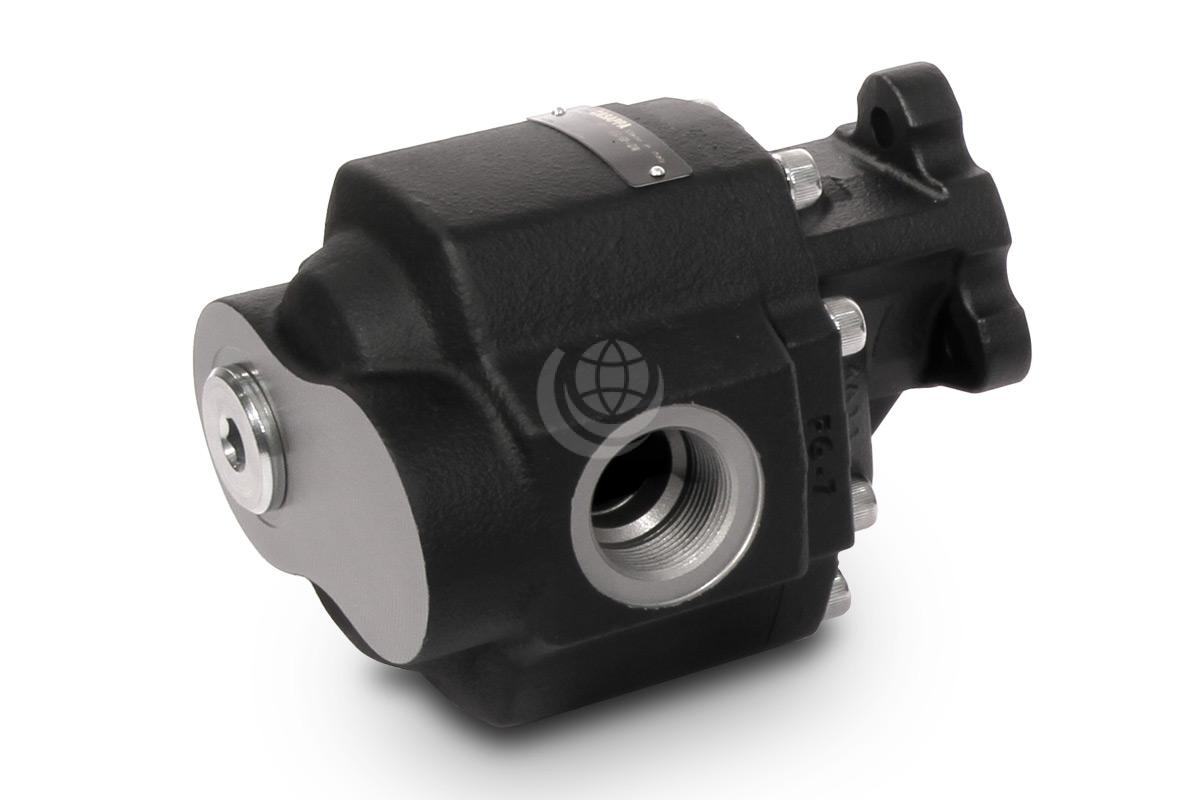

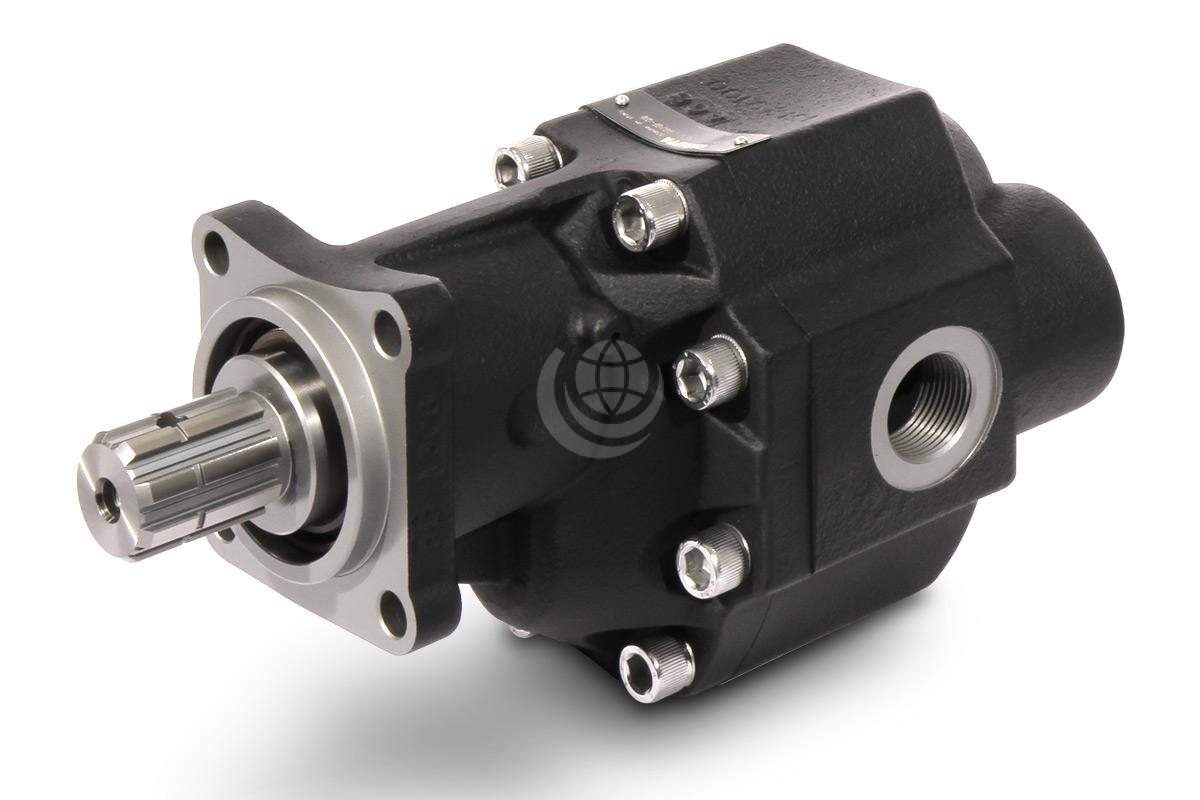

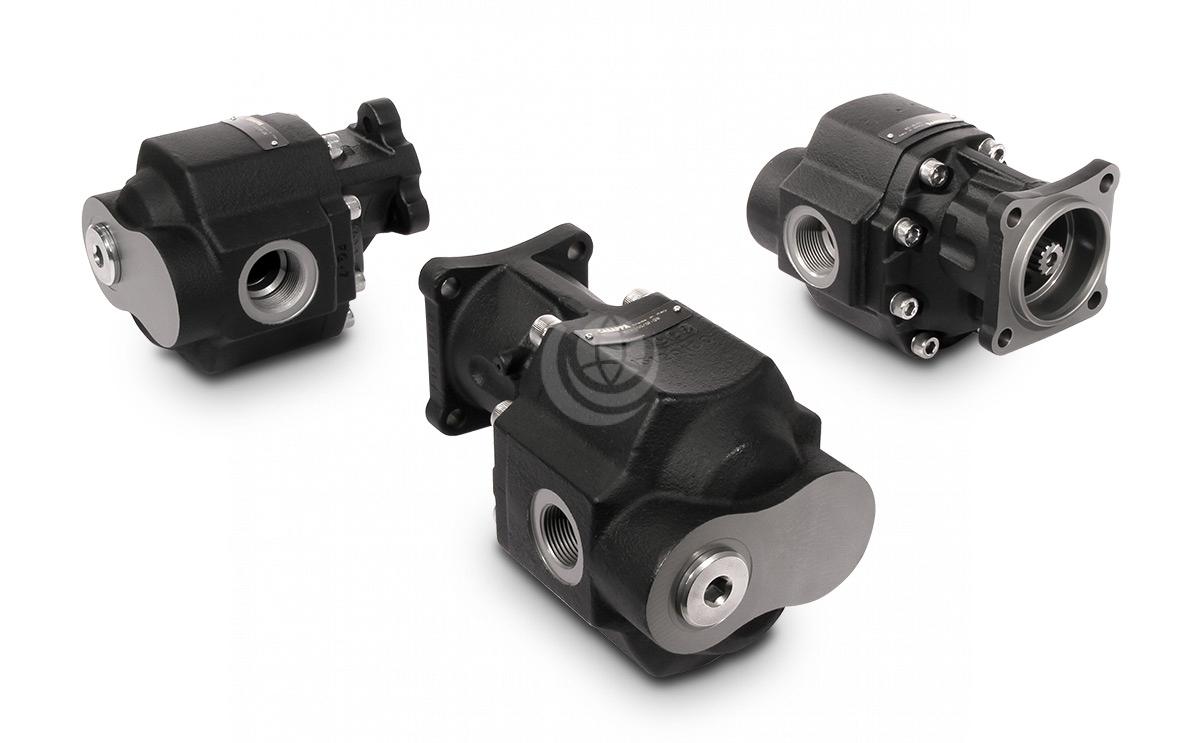

Casappa FP series gear pumps are made of cast iron in two pieces.

Ideal for truck applications, the FP series is available in a range of displacements from 0.50 in³/rev (8.26 cm³/rev) to 9.20 in³/rev (150.79 cm³/rev) and in groups 20, 30, 35 and 40.

Maximum peak pressure up to 4713 psi (325 bar)
Maximum speed up to 3000 min^-1
High performance also at very low speeds
Different ports position availability
Low noise emission
Shaft seal system no leakage guarantee
Modular design
Direct mounting on the PTOs

Contact us now for further technical details and configuration options.

CASAPPA FORMULA 20

Model Series	Displacement cm³/rev	Maximum Continuous Pressure (bar) p1	Max speed Under Load (rpm)	Max Speed Without Load (rpm)	Min Speed (rpm)
FP 20.8	8.26	280	2000	4200	300
FP 20.11,2	11.23	280	2000	4200	300
FP 20-16	16.85	280	2000	4200	300
FP 20-20	21.14	260	2000	4200	300
FP 20-25	26.42	220	2000	4200	300
FP 20-31,5	33.03	190	1800	4000	300
FP 20.36	35.94	170	1800	4000	300
FP 20-40	39.64	160	1800	4000	300

CASAPPA FORMULA 30

Model Series	Displacement cm³/rev	Maximum Continuous Pressure (bar) p1	Max speed Under Load (rpm)	Max Speed Without Load (rpm)	Min Speed (rpm)
FP 30-17	17.28	290	3000	4000	300
FP 30-27	26.7	290	3000	4000	300
FP 30-34	34.56	280	2800	4200	300
FP 30-38	39.27	280	2800	3500	300
FP 30-43	43.98	270	2500	3500	300
FP 30-51	51.83	240	2500	3500	300
FP 30-61	61.26	220	2000	3500	300
FP 30-73	73.82	200	1800	3500	300
FP 30-82	81.68	190	1800	3500	300
FP 30-100	100.52	180	1800	3500	300
FP 30-125	125.66	160	1800	3500	300

CASAPPA FORMULA 40

Model Series	Displacement cm³/rev	Maximum Continuous Pressure (bar) p1	Max speed Under Load (rpm)	Max Speed Without Load (rpm)	Min Speed (rpm)
FP 40-63	61.43	290	2700	4200	300
FP 40-73	72.6	280	2700	4200	300
FP 40-87	86.56	260	2700	4000	300
FP 40-109	108.9	240	2700	4000	300
FP 40-133	134.03	220	2500	4000	300
FP 40-151	150.79	180	2500	4000	300

CASAPPA FORMULA SFP 30 AND SFP 35

Model Series Displacement cm³/rev Maximum Continuous Pressure (bar) p1 Maximum speed Under Load (rpm) Maximum Speed Without Load (rpm) Minimum Speed (rpm)

SFP 30.34 35.43 280 2800 4200 300

SFP 30.43 45.09 270 2500 3500 300

SFP 30.51 53.14 250 2500 3500 300

SFP 30.61 62.8 230 2500 3500 300

SFP 30.73 75.68 205 2250 3500 300

SFP 30.82 83.74 195 2250 3500 300

SFP 35.90 95.99 230 2250 3500 300

SFP 35.1 104.92 220 2250 3500 300

SFP 35.112 118.31 205 2250 3500 300
