Description

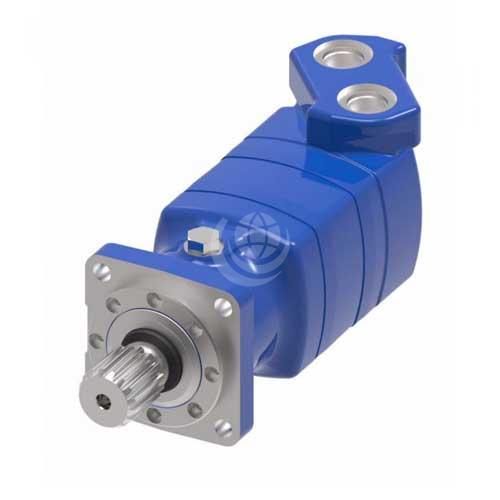

The Eaton Char-Lynn 10000 series motor is the biggest in their disc valve motor range. Capable of continuous flow of 170 litres/minute and 2,700 Nm of torque, this motor is both powerful and efficient.
Typical applications include: boring, industrial, metal forming, port equipment and saw mills.
The motor is available in 4 displacements ranging from 345 cm³/rev to 940 cm³/rev:
| 10000 Series Motors | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/rev) | 345 | 480 | 665 | 940 | |||||||||
| Max. Cont. Speed (rpm) | 501 | 354 | 254 | 179 | |||||||||
| Max. Int Speed (rpm) | 784 | 552 | 396 | 279 | |||||||||
| Continuous Flow (l/min) | 170 | 170 | 170 | 170 | |||||||||
| Intermittent Flow (l/min) | 265 | 265 | 265 | 265 | |||||||||
| Continuous Torque (Nm) | 1040 | 1475 | 2085 | 2700 | |||||||||
| Intermittent Torque (Nm) | 1390 | 1965 | 2610 | 3440 | |||||||||
| Cont. Pressure (bar) | 205 | 205 | 205 | 190 | |||||||||
| Int. Pressure (bar) | 275 | 275 | 260 | 240 | |||||||||
| Peak Pressure (bar) | 275 | 275 | 275 | 260 |
Other features of the 10000 series motor:
- High torque and flow;
- Additional options including 2 speed and speed sensors make this motor “smart”;
- Low pressure loss even in higher flows;
- High power density for demanding mobile and industrial applications.
Download the Eaton Char-Lynn 10000 Series Technical Catalogue >>>
Contact us now for technical advice and configuration options.
