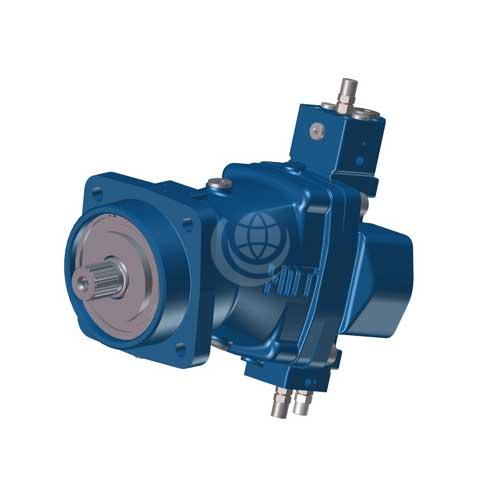

Dana Brevini H1V Axial Piston Pump

Description

Dana Brevini H1V pumps are variable displacement, bent axis axial piston pumps. They are for use in open circuits and are available in both metric and SAE mounting flange version.

Their versatile design includes a lens shape valve plate and a variety of controls and shaft ends that will adapt the H1V series pumps to mobile and industrial applications. Heavy duty bearings permit high radial and axial loads.

H1V series pumps are available in 5 displacements from 54.8 cc/rev to 225.1 cc/rev: H1V 055 | H1V 075 | H1V 108 | H1V 160 | H1V 226

These pumps provide continuous pressure up to 350 bar (5100 psi) and 450 bar (6500 psi) peak.

Dana Brevini Motion Systems is the division of Dana Off-Highway Motion and Drive Technologies and is the result of the acquisition by Dana of the Breveni Fluid Power business.

Dana Brevini is committed to customer satisfaction and excellence of their products and services. This means the company offers superior product quality, technologically advanced products, world-class service and competitive prices.

Download the Dana Brevini H1V Technical Catalogue >>>

Contact us for further technical details and configuration options – we’ll be delighted to help!
