    Eaton 741 743 746 Medium Pressure Fixed Motors

    Eaton 741 743 746 Medium Pressure Fixed Motors

    Description

    Eaton 741 (741xx), 743xx and 746xx series motors are medium-pressure, fixed displacement motors. They are ideal for many mobile and industrial applications and provide a high-performance alternative to bent axis motors where applications require high speeds in excess of 4000 rpm.

    These Eaton motors feature displacements from 9.8 cc/rev to 82.6 cc/rev. a continuous pressure rating of 370 bar (5,300 psi), a speed rating up to 6,000 rpm, and a through-drive option:

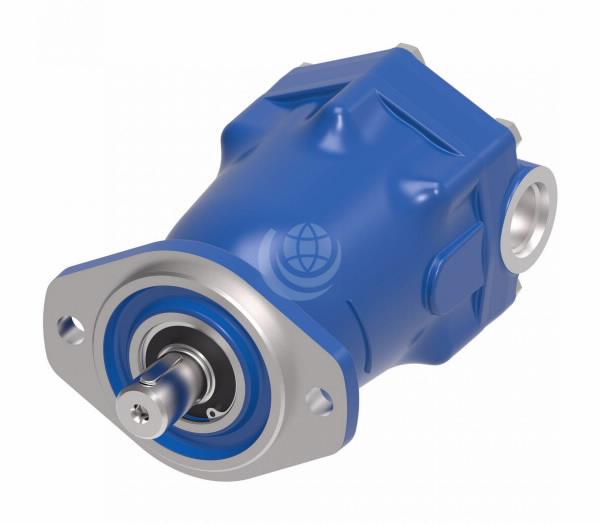

    • 741xx series: 2 bolt SAE “A” mount, 2 displacements: 9.8 and 20.3 cc/rev

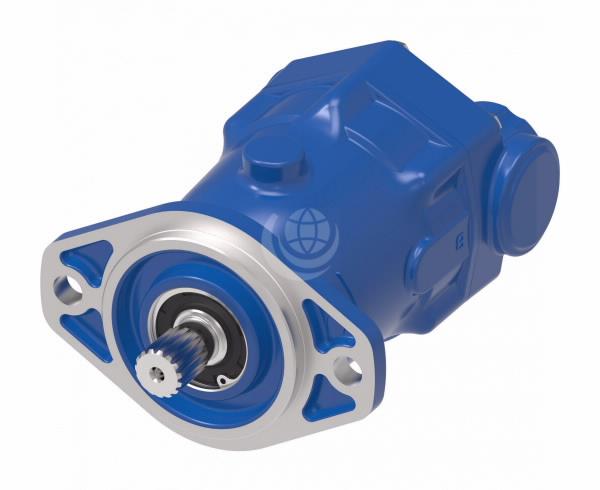

    • 743xx series: 2 bolt SAE “B” mount, 3 displacements: 32.9, 40.6 and 49.2 cc/rev;

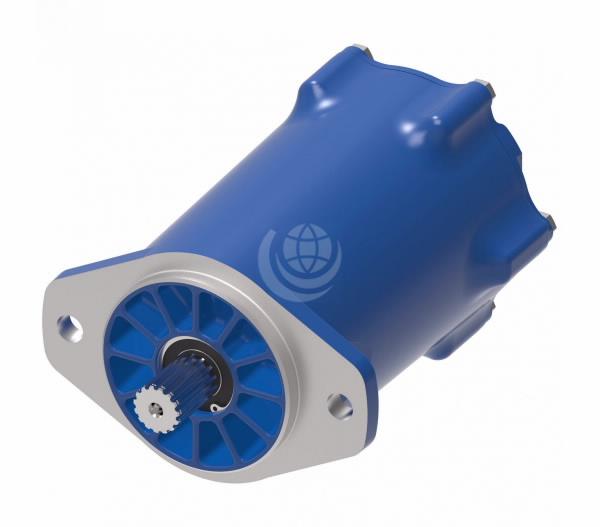

    • 746xx series: 2 bolt SAE “B-B” mount, 82.6 cc/rev.

    Features and benefits of Eaton 741, 743 and 746 series fixed motors include:

    • Compact, enabling ease of installation;
    • Lightweight, durable housing;
    • Efficient axial piston design;
    • Options for: shafts, ports, shuttle valves, speed pickup;
    • Optional shuttle, back pressure valve – improved loop cooling, flushing;
    • Optional speed sensor available (9 pulse/rev.) – 50 rpm.



    Download the Eaton 741 743 746 Series Technical Catalogue>>>

    Contact us for further technical details and configuration options.
