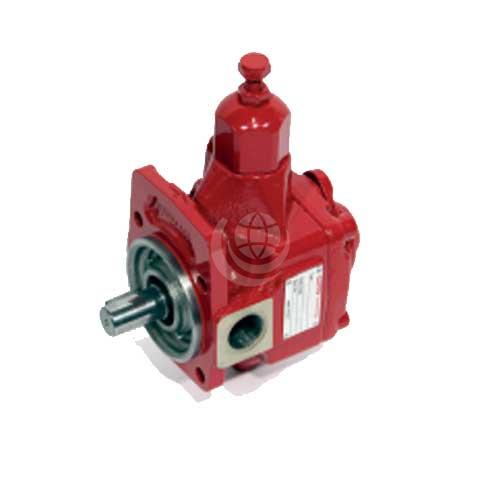

    Hydac PVV102 Vane Pumps

    Hydac PVV102 Vane Pumps

    Description

    The Hydac PVV102 pump is a direct acting variable displacement vane pump with mechanical compensation for use in open circuits.

    It is available in 4 nominal sizes with displacements from 17 cc/rev to 123 cc/rev:

    PVV102-05-16 | PVV102-1-20 | PVV102-1-25 | PVV102-1-32 | PVV102-2-40 | PVV102-2-50 | PVV102-2-63 | PVV102-3-80 | PVV102-3-100 | PVV102-3-120

    Operating pressure ranges from 90 bar to 120 bar, maximum drive speed ranges from 1500 rpm to 1800 rpm.

    The pump is also available as a multiple pump, and pressure control is an option.

    Download the Hydac PVV102 Technical Catalogue >>>

    Contact us for further technical details and configuration options.
