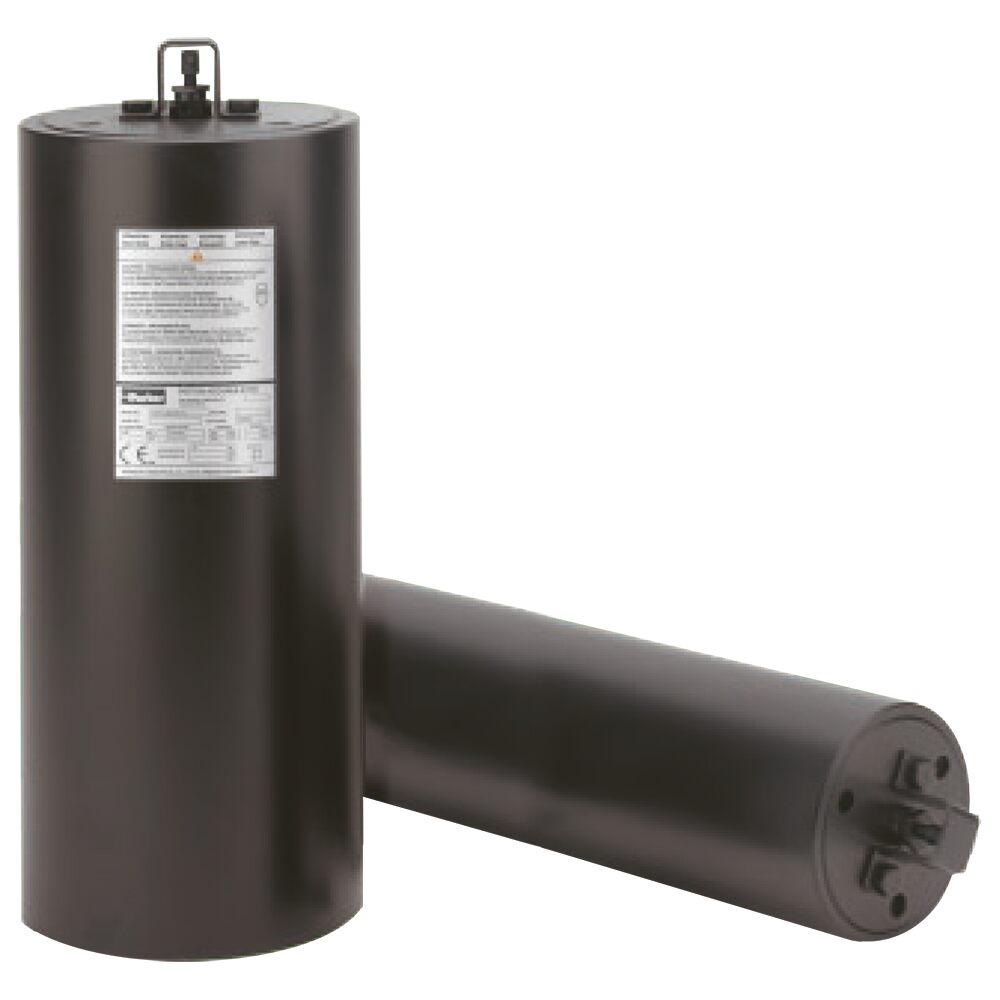

Parker AP Series Accumulators

Description

Parker AP piston accumulators are for use in high performance applications such as industrial press, die casting and plastic injection moulding – where large volumes of fluid have to be displaced at high speed. They are available in 3 types AP 180 | AP 250 | AP 360 up to 300 litres volume, and a wide range of bore/stroke combinations to optimise the use of available space.

Features and benefits of Parker AP accumulators include:

  • Special multi-element sealing systems providing good servo application and load holding properties capable of withstanding continuous use at piston speeds of up to 8 metres/second
  • A range of designs, materials and coatings to suit custom applications and hostile environments
  • 180mm and 250mm bore accumulators with threaded caps to minimise downtime and simplify maintenance of the accumulator, permitting quick and easy installation of seals
  • 360mm bore units with a screwed ring to retain the gas and oil caps, reducing the mass of parts handled during maintenance and providing additional protection for the gas valve
  • High burst test safety factor.

Technical specifications for Parker AP180 | AP250 | AP360 accumulators:

  • Body material: carbon steel shell and end caps, aluminium piston
  • Maximum operating pressure: 250 bar | 350 bar
  • Valve: standard cored-type gas valve. Optional poppet-type gas valve (1/2-20 UNF-2A)
  • Port connection size: G3/4, G1, G1 1/2, G2
  • Maximum flow rate: 45,000 litres/minute
  • Certificates: CE PED – Europe
  • Operating temperature: -20°C to +150°C
  • Weight: 83kg to 1051kg
  • Length: 549mm to 3622mm (flange mounting surface on AP360 series extends 2mm beyond shell)

Contact us for further technical details and configuration options.
