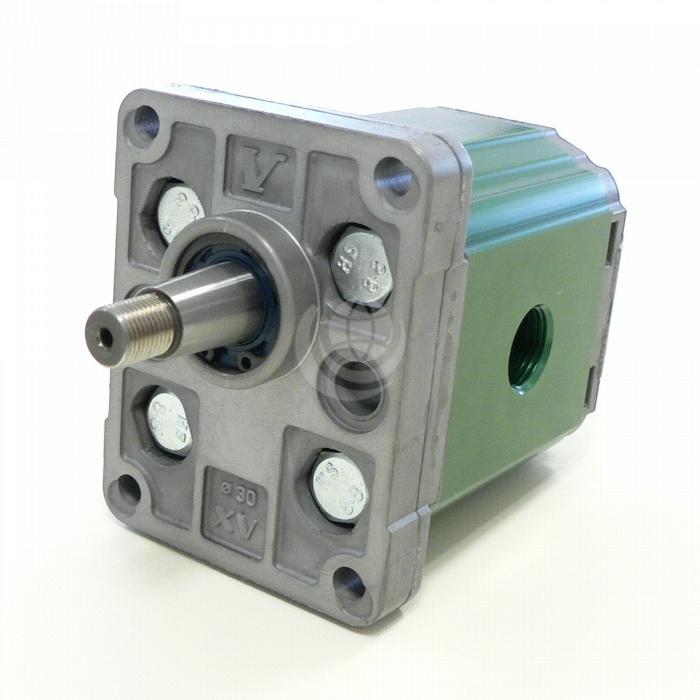

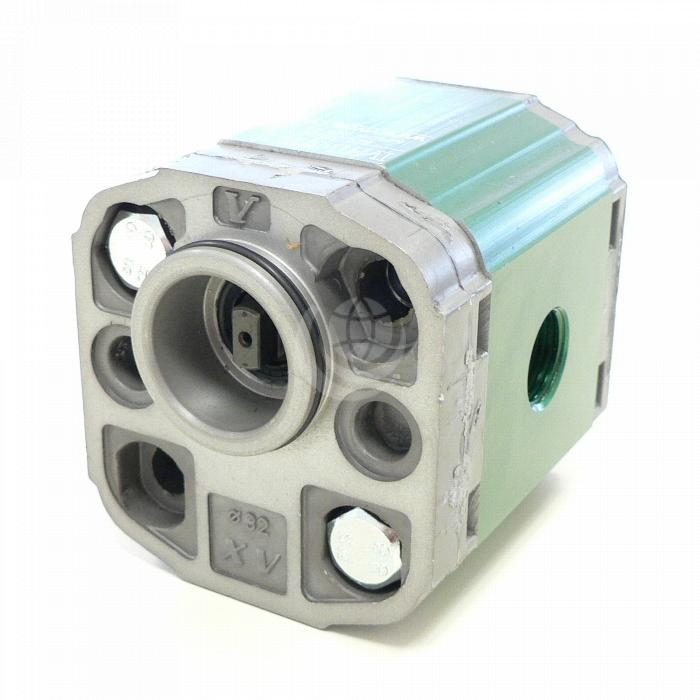

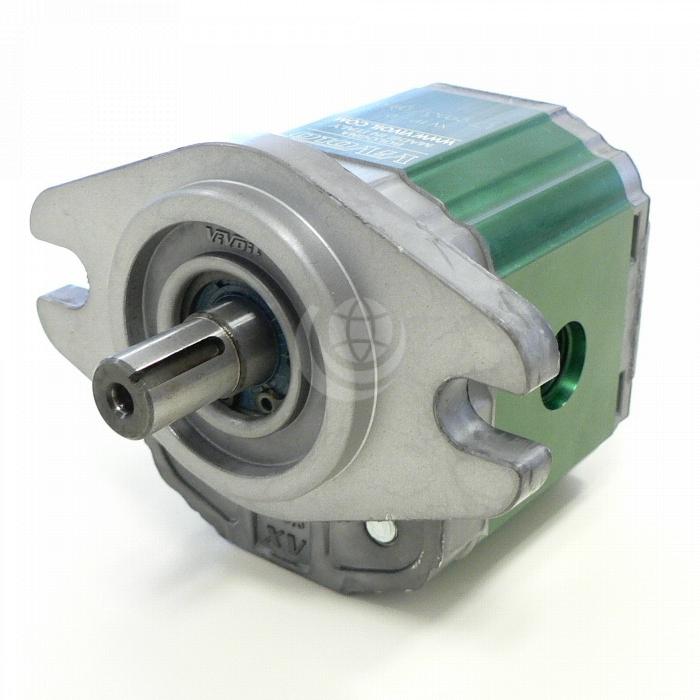

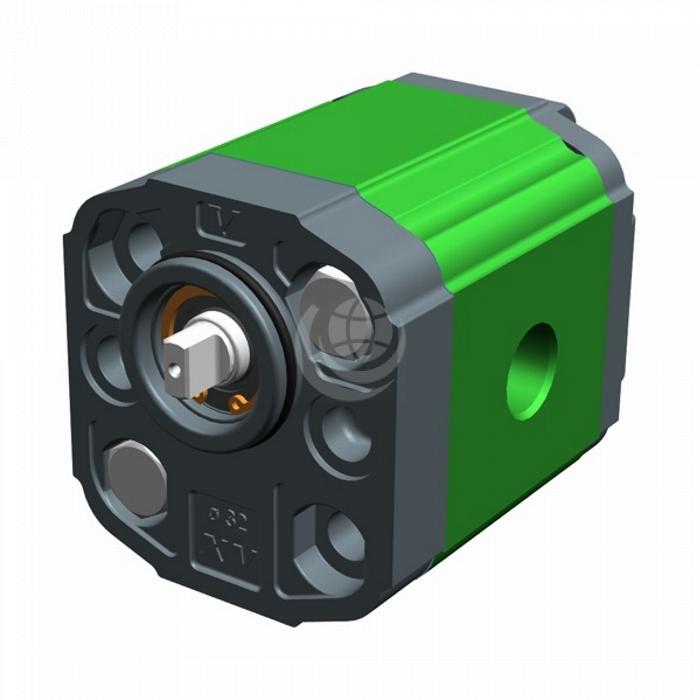

    Vivolo Vivoil External Gear Pump / Motor – Series XV – Group 1

    Vivolo Vivoil External Gear Pump / Motor – Series XV – Group 1

    Description

    External Gear Pump / Motor – Series XV – Group 1

    Left or right rotation. You can reverse it without having to add any components (exception: versions with outlet / inlet in the front flange) to optimize storage space and adapt the product to your needs.

    The Vivolo XV1 Group 1 series comprises of: Vivolo XV1P / XP1 series unidirectional pumps; Vivolo XV1R / XR1 series reversible pumps; Vivolo XV1U / XU1 series unidirectional motors and Vivolo XV1M / XM1 series reversible motors.

    Main features:

    • Displacements from 0.91 cm3/rev to 9.88 cm3/rev
    • Maximum pressures up to 300 bar
    • Rotation speeds up to 6000 rpm

    Options available:

    • Viton seals
    • Maximum pressure valve
    • Reinforced shaft seal for pressures up to 6 bar continuous

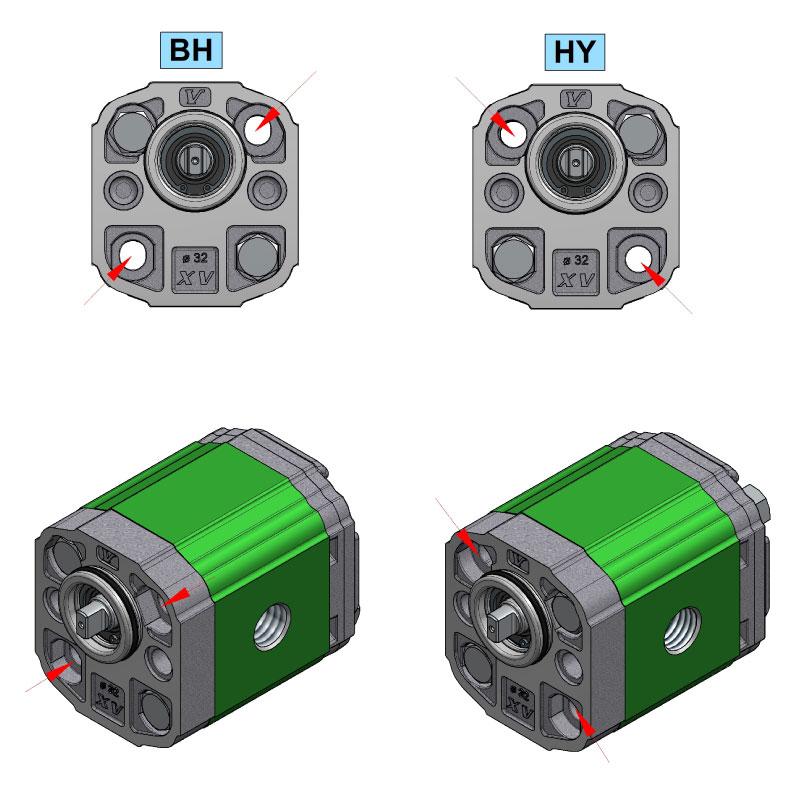

    • Inlet and outlet in the body, front flange or back cover
    • Double shaft
    • Other shafts available: tapered shaft 1:8 with key, milled shaft, splined shaft

    Contact us now for technical advice and configuration options.

    Download the Vivolo Vivoil Gear Pumps and Motors Technical Data Sheet >>>
