Bosch Rexroth Electronics

Bosch Rexroth produces a range of electronics and control systems, including: valve amplifiers, command valve preparation, motion, sensors and signal encoders and other electronic accessories

Bosch Rexroth electronics are available with both analogue or digital amplifier cards. Furthermore, they are also available in Euro-card format and with analogue amplifiers in a modular design or connector design. The range also provides a portfolio of digital control electronics and motion controllers including 1-axis controllers through to high-performance multi-axis control systems.

Bosch Rexroth Valve Amplifiers

The amplifier range comprises analog amplifier cards in Euro-card format, and analog amplifiers with a modular design. Additionally, the connector design amplifiers have been adapted to existing valve technology and are available to fit controlled or regulated drives. The following products are suited to their respective valves as stated below.

Proportional valves without electrical position feedback:

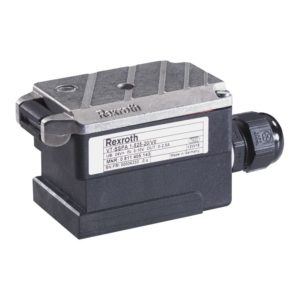

• Analogue connector design: VT-SSPA1-5…-2X | VT-SSPA1-1-1X | VT-SSPA1-50-1X| VT-SSPA1-5-1X | VT-SSPA1-100-1X | VT-SSPA1-150-1X | VT-SSPA1-525-1X/V0.

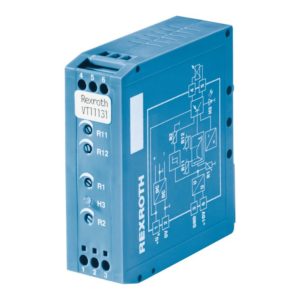

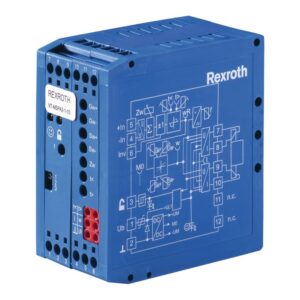

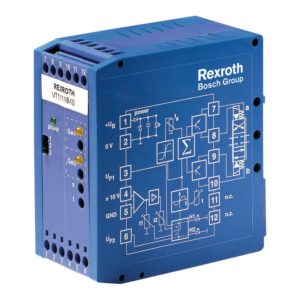

• Analogue modular design: VT-MSPA1-5…-1X | VT-MSPA2-5…-1X | VT-MSPA1-1-1X | VT-MSPA1-10-1X | VT-MSPA1-11-1X | VT-MSPA1-30-1X | VT-MSPA1-150-1X | VT-MSPA1-200-1X | VT-MSPA1-50-1X | VT-MSPA2-1-1X | VT-MSPA2-200-1X | VT 11131-1X | VT 11132-1X | VT 11118-1X | VT-MSRA1-1-1X

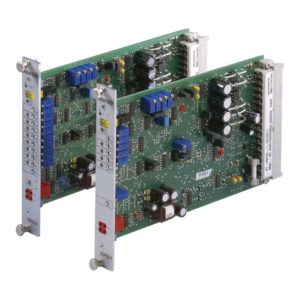

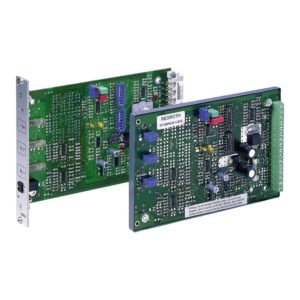

• Analogue Euro-card format: VT-VSPA1-5…-1X/RTP | VT-VSPA1-10-1X | VT-VSPA1-11-1X | VT-VSPA1(K)-1-1X | VT-VSPA1-2-1X | VT-VSPA2-1-2X | VT 2000-5X
• Digital Euro-card format: VT-VSPD-1-2X
• Digital Euro-card format: VT-VRPD-2-2X

Proportional valves with electrical position feedback:

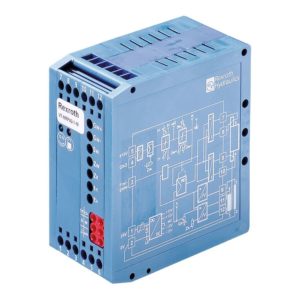

• Analogue modular design: VT-MRMA1-1-1X | VT-MRPA1-1…-1X | VT‑MRPA1‑1‑1X | VT‑MRPA1‑2‑1X | VT‑MRPA2‑1‑1X | VT‑MRPA2‑2‑1X
• Analogue Euro-card format: VT‑VRPA1‑5…‑1X/V0 | VT-VRPA1-5…-1X/RTP | VT-VRPA1-1…-1X | VT‑VRPA1‑50‑1X | VT‑VRPA1‑51‑1X | VT‑VRPA1‑52‑1X | VT‑VRPA2‑1‑1X | VT‑VRPA2‑2‑1X | VT-VRM1-1-1X

Control valves:

• Analogue Euro-card format:  VT-VRPA2-5…-1X/RTS | VT-VRPA2-5…-1X/RTP | VT-VRRA1-527-1X | VT‑VRRA1‑5…‑2X/V0 | VT‑VRRA1‑5…‑2X/…K40-AGC | VT‑VRRA1‑5…‑2X/…K60‑AGC | VT‑VRRA1‑5…‑2X/V0/KV‑AGC | VT‑VRRA1‑527‑2X/V0/2STV | VT‑VRRA1‑527‑2X/V0/PO-IS | VT‑VRRA1‑527‑2X/V0/K40‑AGC‑2STV | VT-KRRA2-5…-2X | VT‑VRPA1‑527‑2X/V0/RTS‑2STV | VT-VRPA1-537-2X/V0 | VT‑SR31‑1X … | VT‑SR38‑1X | VT‑SR41‑1X | VT‑SR42‑1X | VT‑SR43‑1X

Proportional valves for adjusting axial piston pumps:

• Analogue modular design: VT-MSPA1-150-1X
•  Analogue Euro-card format: VT 5035-1X | VT-SR7-1X
• Digital Euro-card format: VT-VPCD-1X (A4VS)

Servo valves:

• Analogue modular design: VT 11021-1X
• Analogue Euro-card format: VT-SR1-1X | VT-SR2-1X | VT-SR11-1X

On / off valves:

• Analogue connector design: VT-SSV-1-2X | VT-SSBA1-PWM-1X
• Analogue modular design: VT-MSFA1-50-1X | VT-MSFA1-100-1X | VT-MSFA1-150-1X

Command Value Modules:

• Analogue modular design: VT-SWMA-1-1X | VT-SWMAK-1-1X | VT-SWMA3-5-1X
• Analogue Euro-card format: VT-SWKA1-1X | VT-SWKA2-5-1X

Motion Control Units:

• Analogue: VT-MACAS-1X | VT-VARAP1-2X | VT-VACAP-2X | VT-VACAF-1X
• Integrated bus valves: 4WREF
• Integrated p/Q valves: STW 0195 | STW 0196 | 4WREQ
• Integrated axis controller: 4WRPNH../24C/P | 4WRPNH../24F.. |  4WRPDH
• Standard: VT-HACD-3-2X | VT-HACD-1-1X | VT-HACD-DPQ-2X
• Programmable: VT-HMC-1-1X | VT-HNC100…3X | VT-HNC100…/S-3X | SYHNC100-SEK-3X | VT-HNC100…2X
• Hägglunds Spider
• Advanced: IndraMotion MLC and VT-MAC8.

Bosch Rexroth Sensors and Signal Encoders:

• Pressure sensors: HM16-1X | HM20-2X | HM20-1X;
• Electronic pressure switches: HEDE10A1-2X…/1/ | HEDE10A1-2X…/2 | HEDE11A1-1X…/2
• Mechanical pressure sensors: HED 1 -4X | HED 2 -3X | HED 3 -4X | HED 5 -3X | HED 8 -2X
• Speed sensors: DSM 1 -1X
• Signal encoders: VT 10468 | VT 10406 | VT 10399

Electronic Accessories:

• Racks and card holders: VT 10812-2X | VT 3002-2X | VT 12302-3X | VT19101‑1X | VT19102‑1X | VT19103‑1X
• Power supply and stabilising units: VT 11006-1X | VT 11116-1X | VT‑NE30‑2X | VT‑NE31‑1X | VT‑NE32‑1X | VT 11110-1X
• Test and service devices: VT-SVTSY-1-1X | VT-VETSY-1-1X
• Mating connectors: 08008 | 08006

Please contact us for details, advice and configuration options, if you cannot see the Bosch Rexroth electronics that you need listed below – we’ll still be able to help!
