Danfoss Gear Motors

Danfoss gear motors cover mobile and industrial applications across three product lines, GearMe, Rugid and Lumi, with aluminium and cast iron construction options and pressure ratings from 210 to 276 bar (3,000 to 4,000 psi).

The range includes standard gear motors, fan drive variants and ultracompact configurations across Group 1, 2 and 3 frame sizes.

Danfoss Gear Motor Series

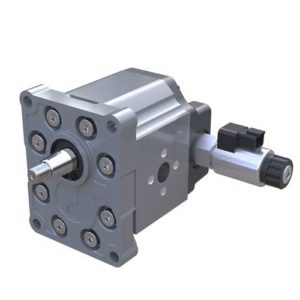

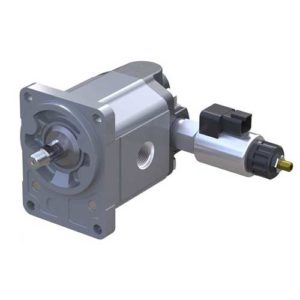

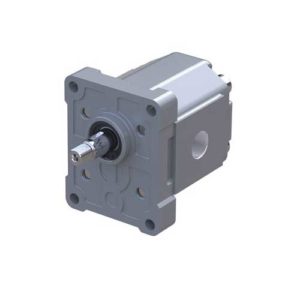

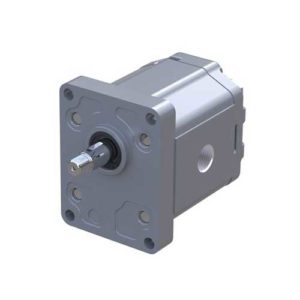

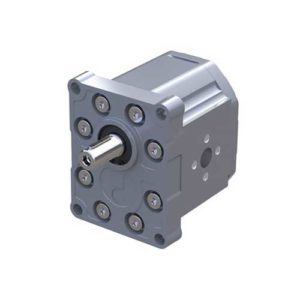

GearMe – Aluminium Gear Motors: Aluminium gear motors for mobile applications from small to large off-road vehicles. Available in three frame sizes (Group 1, 2 and 3) covering displacements from 2.6 to 90 cm³/r, with pressure ratings up to 250 bar (3,625 psi). High-strength extruded aluminium housings, aluminium rear covers and front flanges. European and SAE flange options available. Fan drive variants are included in the range, covering fan loads up to 7.27 kg (16 lb) on Group 2 and 11.75 kg (26 lb) on Group 3. An ultracompact fan drive option is also available within the GearMe range.
Rugid – Aluminium Gear Motors: Die-cast aluminium gear motors for demanding mobile applications where power density and temperature resistance are a priority. Displacements from 7.0 to 31.7 cm³/r, pressure ratings up to 210 bar (3,000 psi). High efficiency over a wide temperature range. Highly polished shafts and gears improve mechanical efficiency and reduce component wear. Optimised trapped oil relief areas reduce pressure ripple for quieter operation. Integrated valve options available.
Rugid – Cast Iron Gear Motors: Cast iron gear motors for continuous operation in the most demanding environmental and temperature conditions. Displacements from 17.6 to 48.3 cm³/r, pressure ratings up to 276 bar (4,000 psi). The cast iron construction provides greater structural strength than aluminium for high-load applications.
Lumi – Standard Gear Motors: A product line for standard mobile and industrial applications. Cast iron flange and end cover for reliability. Pressure-balanced design adapts automatically to operating conditions to maintain sealing pressure, improving efficiency and minimising energy losses. Suited to applications requiring standard motor performance across a range of configurations.

Typical Applications

Danfoss gear motors are used across a wide range of mobile and industrial applications, including:

Off-road vehicles and construction machinery
Agricultural equipment and harvesters
Fan drive and cooling systems
Material handling equipment
Forestry machinery
Conveyor and auxiliary drive systems
Industrial machinery

Our website shows a selection of the Danfoss gear motors we supply. If you cannot find what you need or would like impartial advice on the right specification for your application, please contact our team. We source globally and will still be able to help.

GearMe aluminium gear motors cover the widest displacement range (2.6 to 90 cm³/r) and are suited to a broad range of mobile applications from small to large off-road vehicles, with Group 1, 2 and 3 frame sizes and fan drive options. Rugid motors are designed for demanding applications requiring maximum performance at peak power levels and temperatures – available in aluminium (up to 210 bar) and cast iron (up to 276 bar). Lumi is a standard product line with a cast iron flange and end cover for reliable performance in general-purpose applications.
