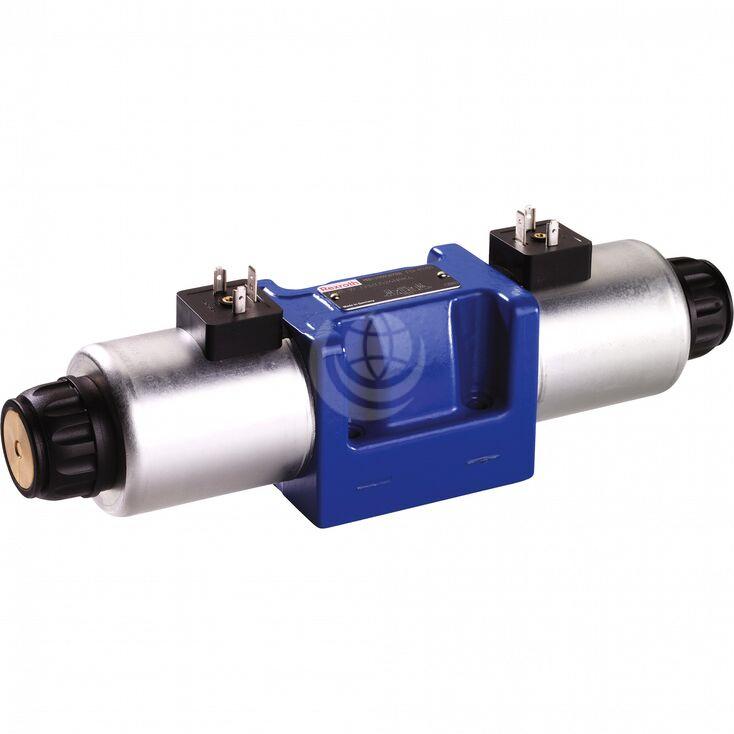

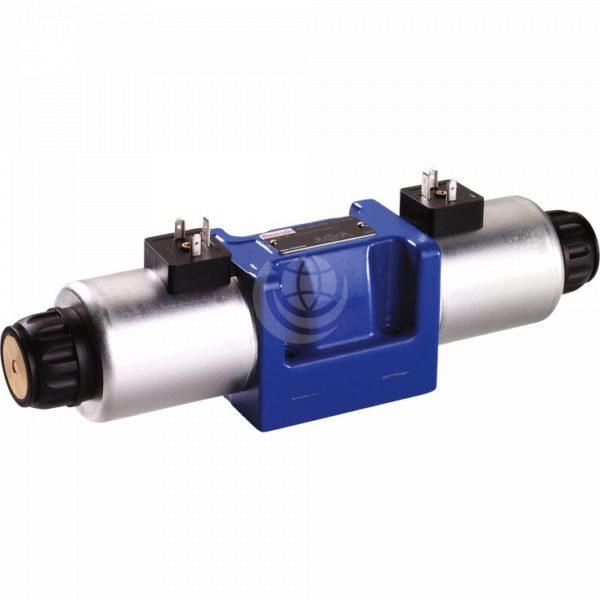

Bosch Rexroth 5-.WE Directional Spool Valve


Bosch Rexroth 5-.WE is a direct operated, 5-chamber directional spool valve with solenoid actuation influencing the switching time. It controls start, stop and direction of the flow – connecting or isolating the connections by moving a control spool in a housing bore.

The valve has a maximum operating pressure of 420 bar and a maximum flow of 150 litres/minute.

Other features of the spool valve include:

  • 5-chamber version;
  • Size 10;
  • Component series 5X;
  • 4/3-, 4/2- or 3/2-way version;
  • Porting pattern according to ISO 4401-05-04-0-05;
  • High-power solenoid, optionally rotatable by 90°;
  • Electrical connection as individual connection;
  • Use optionally with PWM connector (fast switching amplifier, energy reduction);
  • Optional auxiliary operating device;
  • Spool position monitoring, optional;
  • CE conformity according to the Low-Voltage Directive 2006/95/EC for electrical voltages above 50v AC or 75v DC
  • Solenoid coil with UR approval UL 429.

Contact us for further technical details.
