    Bosch Rexroth SL 10 – 32 Check Valve

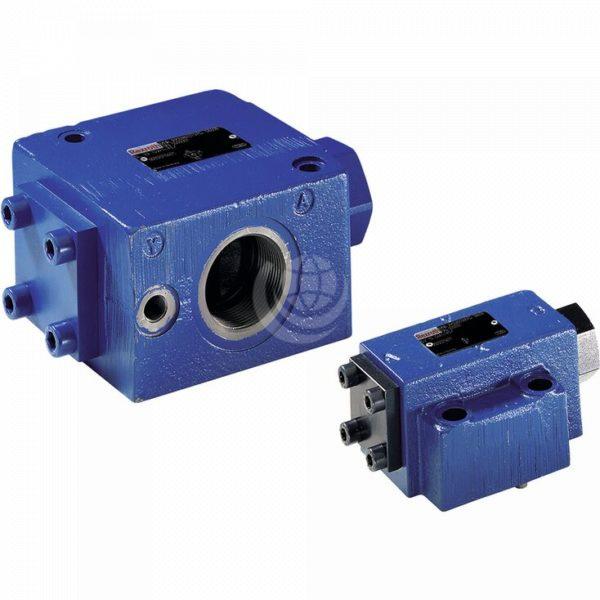

    Bosch Rexroth SL 10 – 32 Check Valve

    Description

    Bosch Rexroth SL 10 – 32 check valves are pilot operated and have a seat design. They are used for leakage-free blocking of one actuator port. Pre-opening delivers damped decompression of the pressurised liquid, thus avoiding possible switching shocks.

    The valve is available in sizes 10, 20, and 32 and has a maximum operating pressure of 315 bar and maximum flow of 550 litres/minute.

    Other features of the Bosch Rexroth SL 10 – 32 check valve include:

    • Component series 4X
    • For subplate mounting
    • Porting pattern according to ISO 5781
    • Threaded connections;
    • For the leakage-free blocking of one actuator port;
    • Attachment possibility for directional spool valve or directional seat valve, optional;
    • Pilot oil return, external;
    • Version with pre-opening for dampened release, optional;
    • Various cracking pressures, optional;
    • Check valve installation sets available individually;
    • Corrosion-protected design.

    Contact us for further technical details and configuration options.
