Description

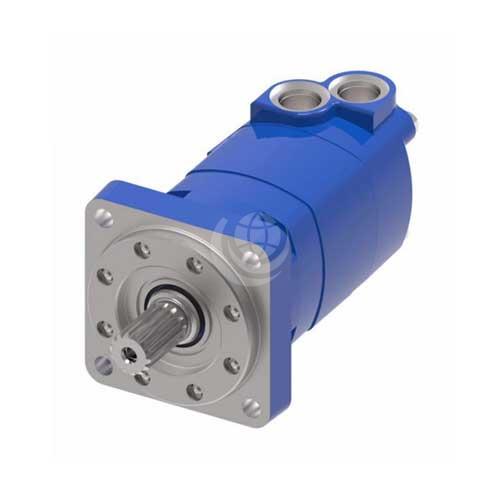

The ‘cornerstone’ of the Char-Lynn line, the Eaton Char-Lynn 4000 Series offers up to 970 Nm of continuous torque and 95 litres / minute.
The 4000 series is available in 10 displacements from 110 cm³/rev to 625 cm³/rev:
| 4000 Series Motors | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement (cm³/rev) | 110 | 130 | 160 | 205 | 245 | 280 | 310 | 395 | 495 | 625 | |||
| Max. Cont. Speed (rpm) | 697 | 722 | 582 | 459 | 383 | 336 | 303 | 239 | 191 | 151 | |||
| Max. Int Speed (rpm) | 868 | 862 | 693 | 546 | 532 | 488 | 422 | 376 | 305 | 241 | |||
| Continuous Flow (l/min) | 75 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 | |||
| Intermittent Flow (l/min) | 95 | 115 | 115 | 115 | 130 | 130 | 130 | 150 | 150 | 150 | |||
| Continuous Torque (Nm) | 320 | 375 | 485 | 600 | 705 | 753 | 850 | 930 | 945 | 970 | |||
| Intermittent Torque (Nm) | 470 | 560 | 705 | 800 | 845 | 957 | 1065 | 1185 | 1170 | 1180 | |||
| Cont. Pressure (bar) | 205 | 205 | 205 | 205 | 205 | 205 | 205 | 190 | 140 | 115 | |||
| Int. Pressure (bar) | 310 | 310 | 310 | 260 | 310 | 260 | 260 | 240 | 170 | 140 | |||
| Peak Pressure (bar) | 310 | 310 | 310 | 310 | 310 | 310 | 310 | 295 | 230 | 180 |
Other features include:
- Variety of mounting flanges and output shafts
- Reliable, proven design
- High efficiency
- Environmental protection options
Download the Eaton Char-Lynn 4000 Series Technical Catalogue >>>
Contact us now for technical advice and configuration options.
