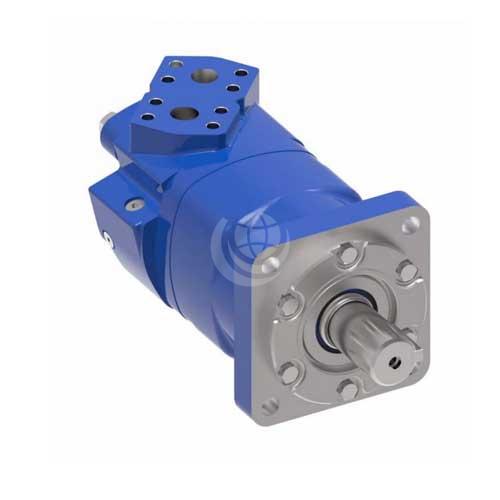

Eaton Char-Lynn 6000 Series Motors

Description

The Eaton Char-Lynn 6000 motor series is a tough motor suitable for demanding applications.

With continuous torque of up to 1685 Nm and flow of 150 litres/minute, the flexible 6000 series motor is packed with power while delivering smooth operation.

There are nine displacements available ranging from 195 cm³/rev to 985 cm³/rev:

6000 Series Motors
Displacement (cm³/rev)195245310390490625735805985
Max. Cont. Speed (rpm)775615485387307241203187153
Max. Int Speed (rpm)866834698570454355303280230
Continuous Flow (l/min)150150150150150150150150150
Intermittent Flow (l/min)170210225225225225225225225
Continuous Torque (Nm)575735930115514451480137815821685
Intermittent Torque (Nm)86011001355163518851898169918501875
Cont. Pressure (bar)205205205205205170140140140
Int. Pressure (bar)310310310310275221170170140
Peak Pressure (bar)310310310310310240205170170

Download the Eaton Char-Lynn 6000 Series Technical Catalogue >>>

Contact us now for technical advice and configuration options.
