Eaton Vickers Pressure Filters
Eaton Vickers pressure filters protect downstream components from contamination levels beyond recommended cleanliness target.
Because they are typically sized for the output of the pump, pressure filters tend to be smaller than return line filters when cylinders are present. In systems using accumulators, pressure filters must be sized according to the large effective flow rates present during parts of the duty cycle.
In some applications, pressure filters are used as isolation filters to protect specific components such as proportional or servo valves. Typically these filters are non-bypass and employ elements that are capable of withstanding full system differential pressure without collapsing.
While these filters are sized to handle only a specific components’ required flow, the use of high collapse elements result in a higher cost than elements used in housings with bypass valves. Most isolation filters are direct mounted beneath the valve which can save space as well as reduce plumbing costs.
The Eaton Vickers pressure filter range comprises:
|ECF Series||19 litres/min||207 bar / 3000 psi|
|LV2P||110 litres/min||100 bar / 1500 psi|
|LV4P||111 litres/min||100 bar / 1500 psi|

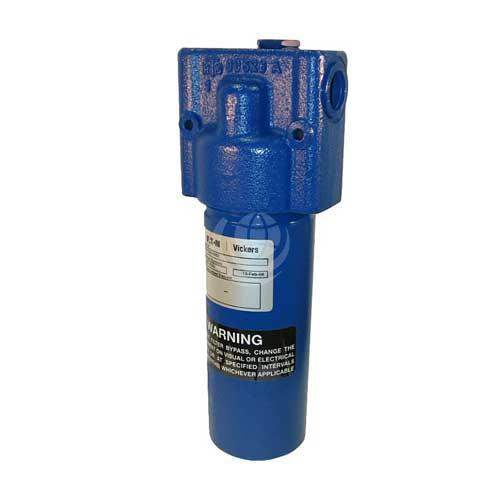

|HF2P in line and subplate||90 litres/min||280 bar / 4000 psi|
|MF2P||113.5 litres/min||275.5 bar / 4000 psi|
|OFPH003 / 005||53 litres/min||310 bar / 4500 psi|
|HF4P in line and subplate||570 litres/min||345 bar / 500 psi|
|HF3P||454 litres/min||420 bar / 6000 psi|
|HF3PS||565 litres/min||310 bar / 4500 psi|
|DMP DIN||100 litres/min||100 bar / 1500 psi|
|DHP DIN||400 litres/min||400 bar / 5800 psi|
Click here for further information on the Eaton group product range, or download the Eaton Vickers filtration catalogue here.
Contact us for further technical details and configuration options.
