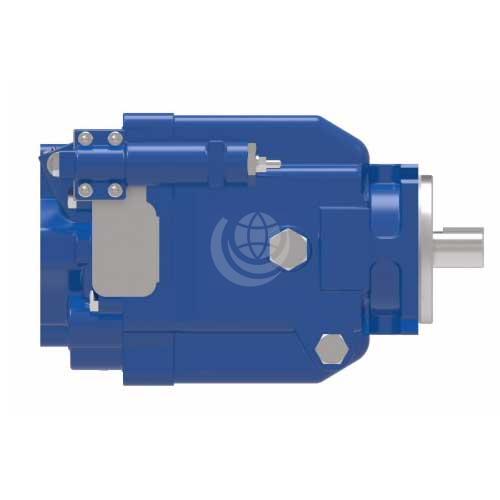

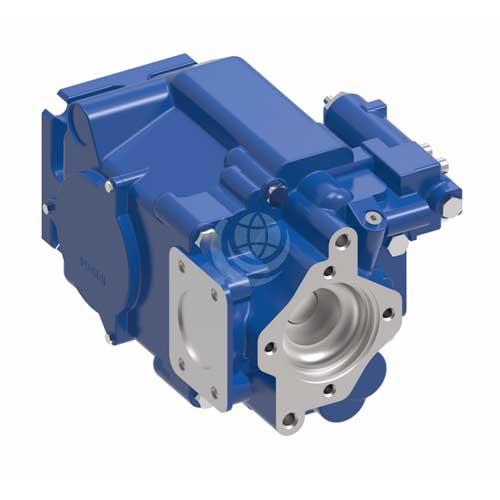

Vickers PVH Series Pumps
The Vickers by Danfoss PVH pumps are a family of high flow, high performance, variable displacement, in-line piston pumps, available in industrial and mobile variants. They incorporate the proven design, manufacturing techniques and operating features of other Vickers piston pumps in a smaller, lighter package, and are designed to meet 250 bar (3625 psi) continuous duty performance, with up to 280 bar (4050 psi) operating performance in a load-sensing system.
The range is built around a heavy duty, compact housing for long life at higher performance levels, with heavy duty bearings and shafts to minimise internal deflection and wear. A versatile design includes single pumps and thru-drive arrangements, with a variety of drive shaft and control options to suit the application, and quiet variants are available for noise-sensitive industrial use.
PVH pumps are designed for maximum efficiency across a broad range of applications, including earthmoving, construction, machine tool and plastics equipment. A variety of compensators provide effective system control, and volumetric efficiency of over 95% directs more input energy to useful work rather than heat and waste. Service kits are available for the most critical rotating and control components to simplify servicing.
Key Specifications
| Specification | Detail |
| Technology | Axial piston, in-line, variable displacement, swashplate design |
| Models | PVH057, PVH063, PVH074, PVH081, PVH098, PVH106, PVH131, PVH141 |
| Displacement range | 57 to 141 cm³/rev (3.5 to 8.6 in³/rev) |
| Maximum pressure | 230 to 250 bar (3300 to 3625 psi) depending on model |
| Load-sensing system pressure | Up to 280 bar (4050 psi) |
| Rated speed | 2000 to 2400 rev/min depending on model, at 0 psig inlet |
| Theoretical flow | 134 to 272 l/min (35.4 to 71.8 US gal/min) depending on model |
| Product range | Industrial and mobile variants available (H-Series Industrial Variable Displacement; H-Series Mobile Variable Displacement); PVH pumps are manufactured in North America and also supplied as genuine OEM replacement parts for restoring original machine performance |
| Configuration | Available as single pumps or thru-drive arrangements, with a choice of drive shaft and control options |
| Standard mounting flange | SAE C 4-bolt (SAE J744-127-4) |
| Alternative mounting | ISO 3019/2-125B4HW (PVH057 and PVH074 only); SAE 2-bolt/4-bolt “027” option (PVH057, PVH074 and PVH098 only) |
| Shaft-up (vertical) mounting | Available on all models via the “057” option |
| Thru-drive rear pad options | SAE A (direct), SAE B (adapter), or SAE C (adapter) |
| Foot mounting kit | Model FB-C4-10, fits all PVH pumps, ordered separately |
Control Options
K – Electronic displacement control
Uses a proportional flow control valve to limit pump displacement; increasing the command signal increases pump displacement. The control has closed-loop swashplate feedback for accuracy, using amplifier card EEA-EDC-436-A*-14 and a 5-pin connector.
L – Electronic displacement control with shuttle valve
As the K option, with the addition of a shuttle valve and auxiliary pressure port. Also uses closed-loop swashplate feedback and amplifier card EEA-EDC-436-A*-14.
Typical Applications
- Agriculture: harvesters, sprayers
- Construction: backhoe and wheel loaders, concrete pumps
- Industrial: marine and offshore, presses and extruders
- Specialty: refuse trucks, airport ground support
Downloads
The following parts manuals are available from Danfoss for service and maintenance reference:
Contact Us for further technical details and configuration options.
