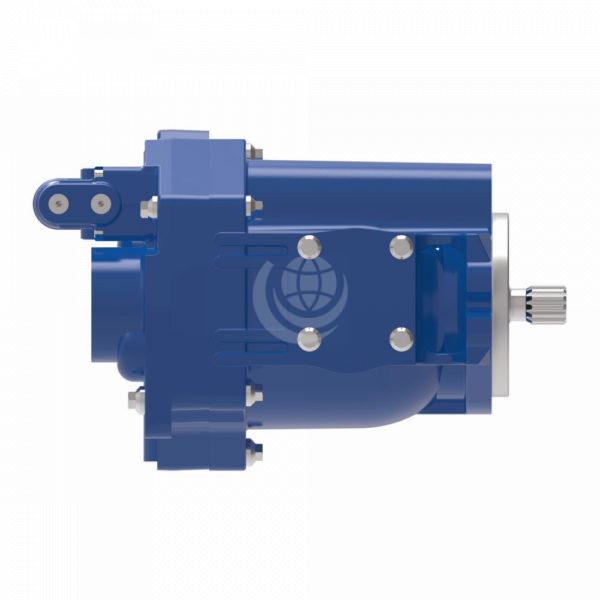

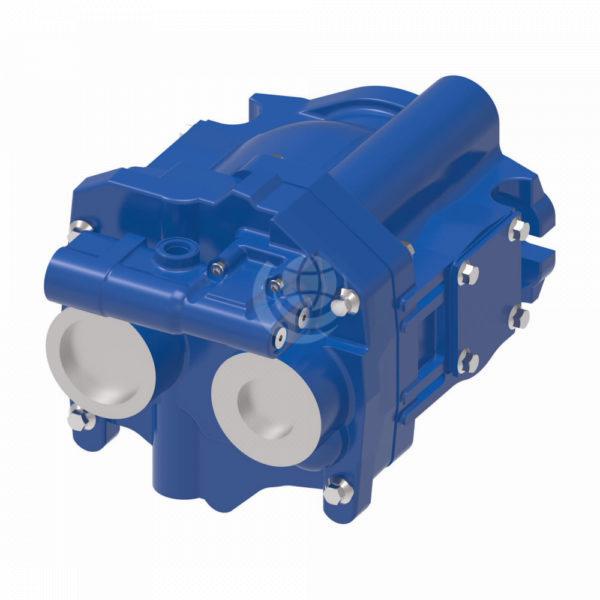

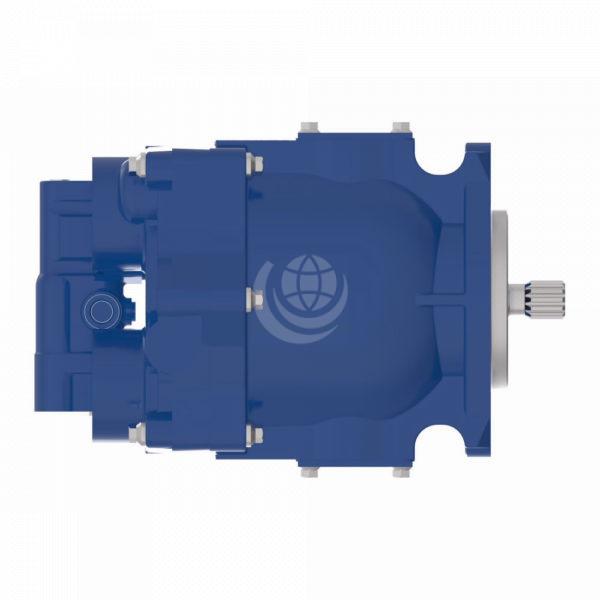

Vickers PVQ Series Piston Pumps
The Vickers PVQ series are in-line variable displacement axial piston pumps designed for industrial applications where low noise is a priority. Operating at sound levels typically lower than the electric motor driving them, PVQ pumps use a patented timing arrangement that reduces noise and minimises pressure pulses in the outlet flow.
Displacement is controlled via a pressure and/or flow compensator, with a range of control options to suit different application requirements. The series is available in a thru-drive configuration, allowing a second pump to be mounted on the rear of the unit.
PVQ pumps are compatible with water-glycol and phosphate ester fluids in addition to standard petroleum-based and synthetic hydraulic fluids, making them suitable for applications where fire-resistant fluid is required.
Key Specifications:
| Specification | Detail |
| Technology | Axial piston, in-line, variable displacement |
| Displacement range | 10 to 45 cm³/r (0.6 to 2.75 cu in) |
| Models | PVQ10, PVQ13, PVQ20, PVQ32, PVQ40, PVQ45 |
| Continuous pressure rating | Up to 210 bar (3,000 psi) — PVQ10 to PVQ40. PVQ45: 190 bar (2,750 psi) maximum |
| Displacement control | Pressure compensator, flow compensator, load sensing, electric dual range, hydraulic remote control |
| Mounting flange | SAE B 2-bolt standard; ISO 3019/2 B 2-bolt (with ISO-graded shaft option) |
| Shaft options | Straight- keyed SAE B; straight- keyed SAE B-B; splined SAE B (13T); splined SAE B-B (15T); ISO- keyed |
| Rotation | Right-hand (CW) standard; left-hand (CCW) optional |
| Port options | O-ring boss rear port (standard); O-ring boss side port; flange side port (thru-drive only) |
| Thru-drive | Available — SAE A or SAE B rear pad options |
| Seal options | Buna N standard; fluorocarbon optional |
| Fluid compatibility | Petroleum-based, synthetic, water-glycol and phosphate ester fluids |
| Fluid cleanliness | ISO cleanliness code 16/13 or cleaner recommended |
Control Options
The PVQ series offers a range of compensator and control configurations:
- C — Pressure compensator. Standard control type. Factory set at 210 bar (PVQ40) or 190 bar (PVQ45). Adjustable from 35 to 210 bar (PVQ40) or 35 to 190 bar (PVQ45).
- CM — Low-pressure compensator. Factory set at 70 bar (1,000 psi). Adjustable from 35 to 150 bar.
- C+V — Pressure compensator with load sensing. Available with a standard load-sense differential of 11 bar (160 psi) or 24 bar (350 psi). Available with bleed-down orifice (B suffix) or plugged (P suffix).
- CG — Hydraulic remote control. Pressure compensator modified for remote hydraulic control.
- CD — Electric dual range compensator. Provides two selectable pressure settings via electrical signal. PVQ40 standard: 210 bar and 100 bar. PVQ45 standard: 190 bar and 100 bar.
An optional maximum displacement stop (D suffix) is available on all control types.
Typical Applications
PVQ series pumps are used in industrial applications where noise levels are a consideration, including:
- Mining machinery
- Injection moulding machines
- Metal-forming machines
- Oil and gas equipment
- Conveyor systems
- Primary metals processing
- Machine tools
- Industrial power units requiring fire-resistant fluid compatibility
Downloads
The following parts manuals are available from Danfoss for service and maintenance reference:
Contact Us for further technical details and configuration options.
