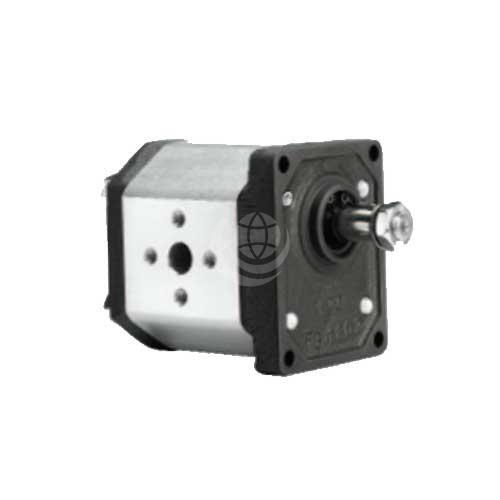

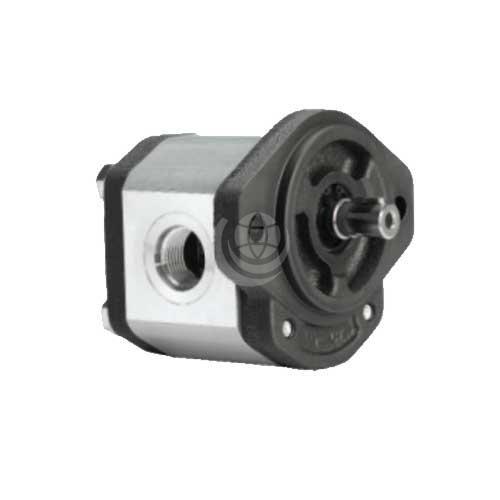

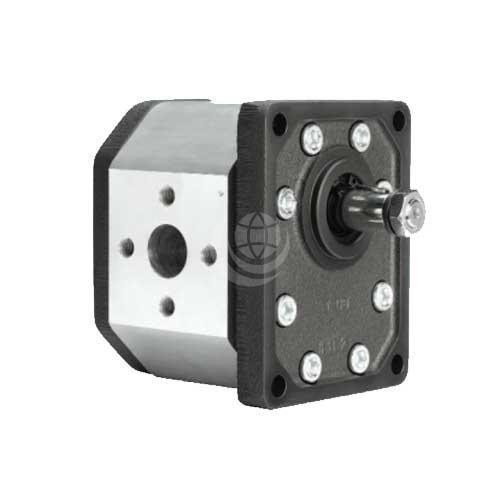

Marzocchi GHP Series Gear Pumps


The Marzocchi GHP series offers identical configurations to the ALP series and guarantees extreme reliability in very high pressure applications.

These pumps are ideal for mobile applications from agricultural to construction machines; the cast iron allows more flange, cover and port options.

Marzocchi GHP series pumps are available in model codes: GHP1 | GHP2 | GHP3

GHP1 Series: Displacements from 1.4 cc/rev to 13.8 cc/rev; maximum speeds from 1,800 to 6,000 rpm; flows at 1500 rev/minute from 2.0 to 19.7 litres/minute.

GHP2 Series: Displacements from 4.5 cc/rev to 35.2 cc/rev; maximum speeds from 2,500 to 4,000 rpm; flows at 1500 rev/minute from 6.4 to 50.2 litres/minute.

GHP3 Series: Displacements from 20 cc/rev to 87 cc/rev; maximum speeds from 2,000 to 3,500 rpm; flows at 1500 rev/minute from 29 to 124 litres/minute.

Download the Marzocchi GHP Technical Catalogue >>>

Contact us for further technical details and configuration options.
