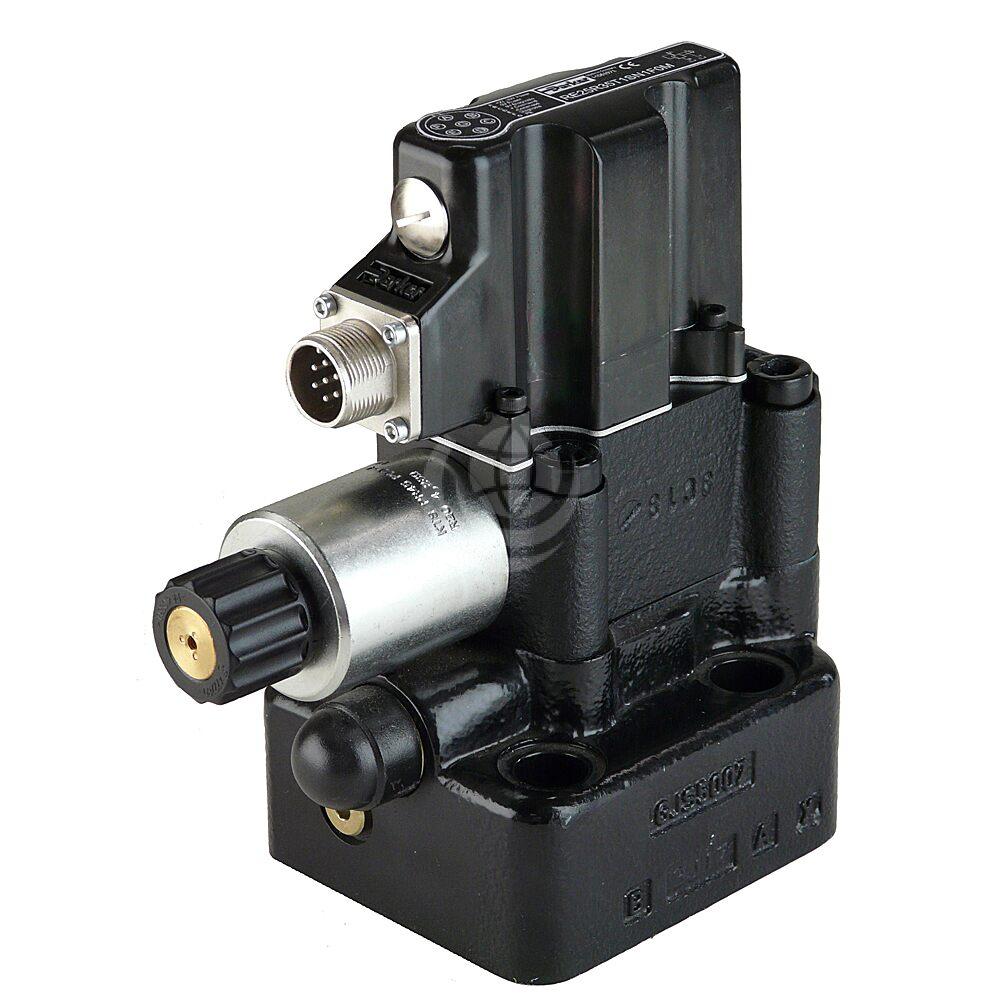

    Parker R4V / R6V OBE Pilot Operated Pressure Relief Valves

    Parker R4V / R6V OBE Pilot Operated Pressure Relief Valves

    Description

    Parker R4V / R6V OBE valves are compact pilot-operated proportional pressure relief valves with integrated electronics. They provide excellent balanced pressure behaviour.

    The valves operate with a proportional solenoid-operated pilot stage with digital electronics which controls a seated type main stage.

    Features and benefits of the Parker R4V / R6V OBE series include:

    • Wide range of options and connections including optional mechanical maximum pressure adjustment
    • Outstanding constant pressure behaviour
    • Very good pressure/flow behaviour
    • On-board electronics permitting storage and loading of valve records, for fast configuration
    • Electronics situated in a robust metal housing
    • Compact design and flexible mounting
    • Optional mechanical maximum pressure adjustment
    • Electrical connection:
      • Code 10V: 6 + PE central connection | 0…+10 V command signal | +10 V reference voltage output
      • Code 4MA: 6 + PE central connection | 4…20 mA command signal
    • Two interfaces for subplate mounting:
      • R4V subplate ISO 6264 (DIN 24340 Form D)
      • R6V subplate ISO 6264 (DIN 24340 Form E)

    Contact us for further technical details and configuration options.

    Download the Parker R4V R6V OBE Technical Catalogue >>>
