Cartridge Load-Holding Check Valves

Secure Load Control in Hydraulic Systems

Cartridge load-holding check valves are designed to prevent a load from dropping when a valve is shifted, ensuring that movement only occurs once sufficient pressure and flow are available to hold or move the load safely. As cartridge valves, they are compact, efficient, and easily integrated into hydraulic manifolds, making them ideal for modern hydraulic circuits where safety and reliability are paramount.

At Hydraulics Online, we supply cartridge load-holding check valves from a wide range of global manufacturers, including Hydraforce and many others… with expert advice to help you select the right valve for your application.

Our website shows only a selection of what we supply. For impartial advice and access to our full range of hydraulic components, contact our expert team.

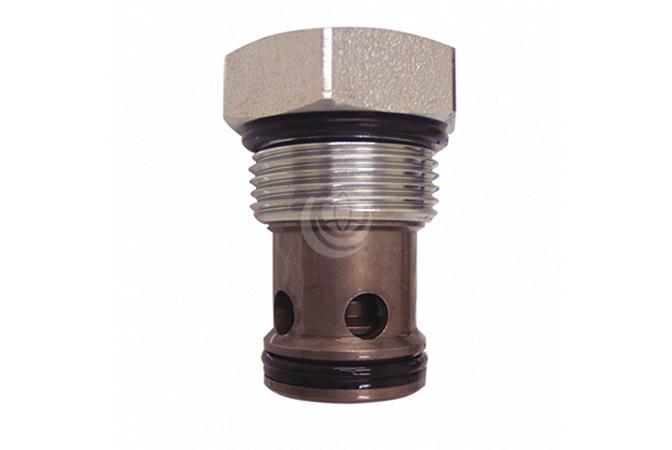

Cartridge Load-Holding Check Valve. For impartial advice and access to our full range of hydraulic components, contact our expert team.

These valves function as one-way devices that allow flow in one direction while preventing reverse flow until a pilot signal or sufficient pressure is applied.

Key designs include:

Standard load-holding check valves – prevent reverse flow until pressure is available.
Pilot-operated check valves – allow controlled release of the load when a pilot signal is applied.

Pilot-to-open check valves – provide precise control over load movement, ensuring safety and stability.

Load security – prevents unintended actuator descent or load dropping.
Compact cartridge design – integrates directly into manifolds, reducing external piping.
Energy efficiency – ensures fluid is only released when pressure is sufficient.
Versatile functionality – available in standard, pilot-operated, and pilot-to-open designs.
Reliable performance – built for demanding industrial, mobile, and marine environments.

These valves are widely used in:

They are particularly valuable in systems requiring secure load holding and controlled release.

How do load-holding check valves differ from standard check valves? Standard check valves prevent reverse flow, while load-holding check valves are specifically designed to secure loads until sufficient pressure is available.

What is the advantage of pilot-operated check valves? They allow controlled release of the load when a pilot signal is applied, offering greater flexibility and safety.

Can these valves be used in lifting applications? Yes! They are essential in lifting and lowering systems to prevent uncontrolled descent.
